R32 Turbo forged pistons & Steel connecting rod set from Wiseco & BAR-TEK®

Product number: 22r3201

Manufacturer: BAR-TEK®

Pretty good team

High Boost
Charging pressures above 3.5 bar
Very light
Very stable

€2,094.70

Prices incl. VAT plus shipping costs

Delivery 5 to 8 days

Your selection

Bore Size / Compr. ratio

Ask a question about this product

Worldwide express delivery

30-day return policy

Certified Online Shop

Made for High-Boost

Bank transfer

Quick Links

Made in Germany

3 Years Warranty

Description Description

Description

Wiseco & BAR-TEK® Pistons and connecting rods in a set for maximum performance

Pretty good team: Forged pistons from Wiseco, I-Beam steel connecting rods from BAR-TEK® and ACL connecting rod bearings for your R32 turbo engine. This exclusive set is perfect for ambitious tuning fans who want to put up to 1000 hp on the road.

The complete set consists of high-performance forged pistons from Wiseco, BAR-TEK® I-Beam steel rods and ACL bearings. The pistons are reinforced for maximum performance and yet extremely light thanks to an alloy. The coated piston skirt reduces abrasion. The piston rings of Wiseco pistons are wider than normal pistons. This means that charging pressures of over 3.5 bar can also be driven without any problems. From a boost pressure of 2 bar you should upgrade to our reinforced turbo piston pins.

Our R32 connecting rods are made for sporty drivers: They are also extremely light, milled from the solid and therefore very stable. Due to the I-Beam they are crack-proof and can withstand highest loads!

Since all parts in this set are perfectly matched to each other, you have the optimal kit for maximum performance of your R32 engine.

Features of the Wiseco pistons:

Piston ring stays are extra 5-8mm wide (instead of normal 3-5mm)
Original Wiseco with coating
Extremely light due to special coating
Reinforced for maximum performance
bore 84,00 mm, 84,25 mm 84,50 mm and 85,00 mm
20 mm piston pin
Compaction 8.5:1
Piston shirt coated for less friction
Complete set incl. piston pins, rings and clips
Installation and drilling dimensions enclosed

Features of the BAR-TEK I-Beam connecting rod:

Original BAR-TEK®
high strength milled from solid material
suitable for extreme performance increases up to approx. 1000 hp
extremely light and very stable
Magnaflux inspected
6 pieces per set
With ARP 2000 expansion bolts 3/8" (reusable)
ARP Assembly paste
Weight per connecting rod with screws only 599 g
With additional bore for piston pin lubrication

Features of the ACL bearings:

Performance bearings
Coated
Extra drilling for piston pin (optional)

Suitable for:

All R32 engines, for example installed in the Golf Mk4, Golf Mk5 or Audi A3 or TT.

The specified compression is achieved in combination with a 1.65 mm cylinder head gasket. Here you can find our compression calculator to determine your desired compression.

Picture Similar

More information on how to properly tighten the connecting rod bolts

This set contains the following articles:

6 cylinder forged piston Wiseco

VW R32 Turbo forged pistons-set Wiseco

Article number: 21r3239.3

2.5L TFSI Audi RS3 & TTRS Race Connecting Rod Bearing Shells Oversize ACL

ACL Con Rod Bearings for VR6, R32 and R36 engines

Article number: 21rvr120

6

R32 & 6 Zylinder Stahl-Pleuel I-Schaft 164 x 20 BAR-TEK®

Article number: MBAR021

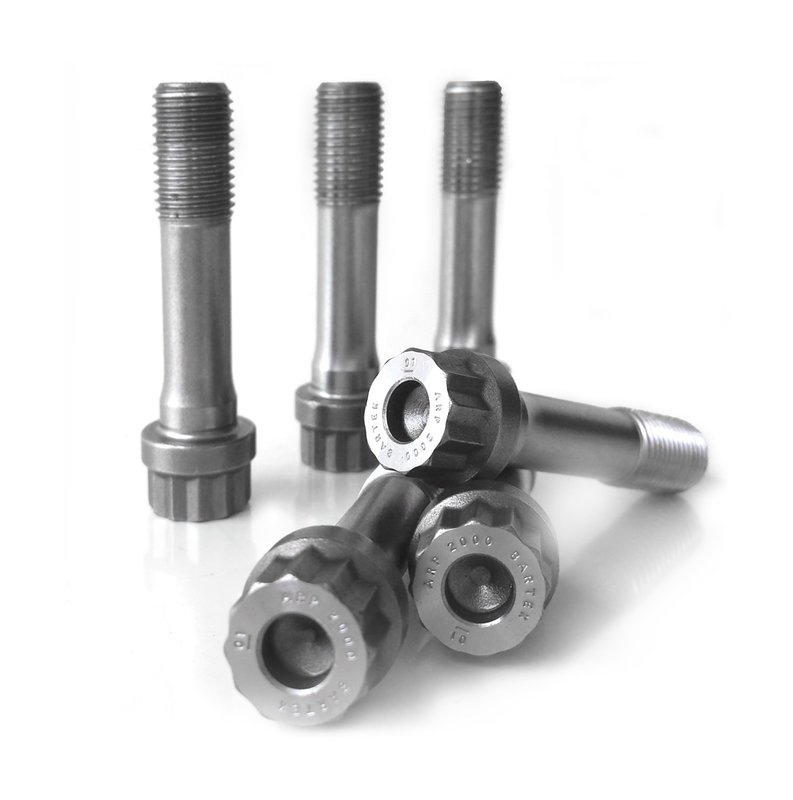

ARP 2000 3/8 Zoll Pleuelschrauben in 40;64mm Länge

12

ARP 2000 3/8 inch connecting rod bolt

Article number: MBAR004

Do you have questions about the product? Just start the chat, we will help you with your product selection.

Questions & Answers

Questions & Answers

Fits for Fits for

Fits for

Volkswagen Golf IV (Type 1J) | Year built 1997-2003 3.2 VR6 (EA390) BFH | 241 hp
Volkswagen Golf IV (Type 1J) | Year built 1997-2003 3.2 VR6 (EA390) BML | 241 hp (177 kW)
Volkswagen Golf V (Type 1K) | Year built 2003-2008 3.2 VR6 (EA390) BDB | 250 hp (184 kW)
Volkswagen Golf V (Type 1K) | Year built 2003-2008 3.2 VR6 (EA390) BMJ | 250 hp (184 kW)
Volkswagen Golf V (Type 1K) | Year built 2003-2008 3.2 VR6 (EA390) BUB | 250 hp (184 kW)
Volkswagen Golf V (Type 1K) | Year built 2003-2008 3.2 VR6 (EA390) CBRA | 250 hp (184 kW)
