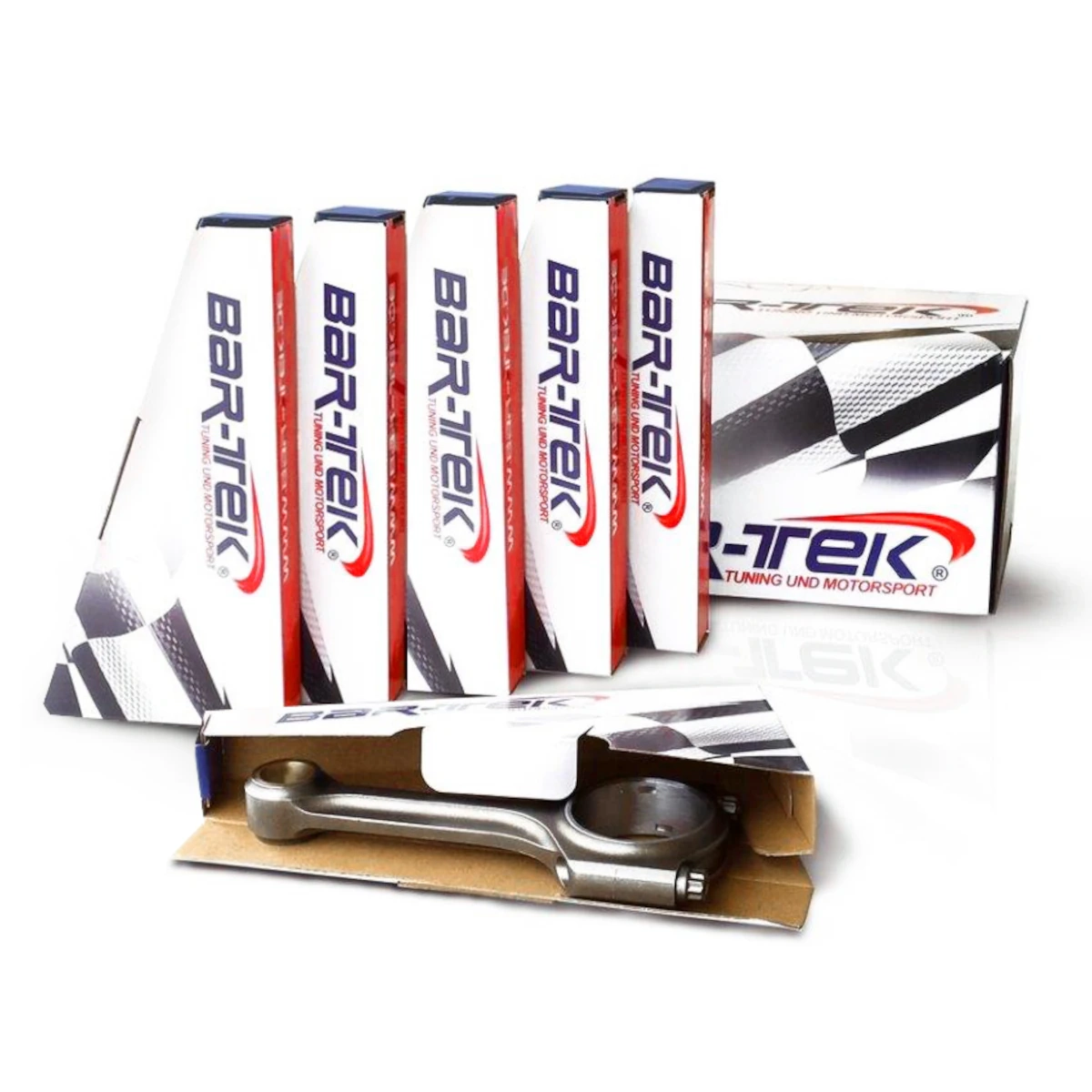

VR6 Turbo forged pistons & Steel connecting rod set from Wiseco & BAR-TEK®

Product number: 22vr604

Manufacturer: BAR-TEK®

BAR-TEK® Set

High boost
Top quality
Super processing
Extremely stable

€1,944.75

Prices incl. VAT plus shipping costs

Delivery 5 to 8 days

Your selection

Bore

Ask a question about this product

Worldwide express delivery

30-day return policy

Certified Online Shop

Made for High-Boost

Bank transfer

Quick Links

Made in Germany

3 Years Warranty

Description Description

Description

Optimal set for VR6 turbo engines: Wiseco pistons and BAR-TEK® connecting rods

The dream team: Forged pistons & X-Beam steel connecting rods from Wiseco & BAR-TEK® for your VR6 turbo engine. With this Kombo you have perfectly coordinated parts, with which you can easily drive power over 1000 hp.

The set includes forged pistons from Wiseco, X-Beam steel conrods from us and ACL racing bearings. The X-beam connecting rods are perfectly designed for extreme performance. The increased cross section distributes the load and reduces it in this way. This makes the connecting rods very crack resistant and stable at extremely low weight (599 grams including bolts).

The Wiseco pistons are also designed for maximum performance. With special alloys and coatings, they are resistant and extremely light. Friction is also significantly reduced. Because the piston ring webs are extra wide, you can easily bring over 3.5 bar boost pressure and over 1000 hp onto the road. From 2 bar you should upgrade to our reinforced turbo piston pins.

With this set you save money and time, because all parts are perfectly matched to each other. In addition they harmonize wonderfully with each other, so that you can get the maximum performance from your VR6 engine!

Features of the Wiseco pistons:

Piston ring stays are extra 5-8mm wide (instead of normal 3-5mm)
Original Wiseco with coating
Extremely light due to special alloy
Reinforced for maximum performance
Bore hole in 82.00 mm, 82.50 mm and 83.00 mm
20 mm piston pin
Compaction 8.5:1
Piston shirt coated for less friction
Complete set incl. piston pins, rings and clips
Installation and drilling dimensions enclosed

Features X-Beam connecting rod:

Original BAR-TEK®
high strength milled from solid material
suitable for extreme performance increases up to approx. 1000 hp
extremely light and very stable
Magnaflux inspected
6 pieces per set
With ARP 2000 expansion bolts 5/16" (reusable)
ARP Assembly paste
Weight per connecting rod with screws only 599 g
With additional bore for piston pin lubrication

Features ACL bearings:

Performance bearing
Coated
Extra bore for piston pin (optional)

Suitable for:

All VR6 engines as installed in the Corrado or Golf 3.

The compression specified is achieved in conjunction with a 1.65 mm cylinder head gasket.

Here you can find our compression calculator to determine your desired compression.

More information on how to properly tighten the connecting rod bolts

This set contains the following articles:

2.5L TFSI Audi RS3 & TTRS Race Connecting Rod Bearing Shells Oversize ACL

ACL Con Rod Bearings for VR6, R32 and R36 engines

Article number: 21rvr120

6 cylinder forged piston Wiseco

VW VR6 2.8-2.9L 12V TURBO forged pistons-set WISECO

Article number: 21vr6062

H-shafted connecting rod 164x20mm V6 BAR-TEK®

6

H-Schaft Pleuel 164x20mm V6 BAR-TEK®

Article number: MBAR037

ARP 2000 5/16 Zoll Pleuelschrauben in 38;1 Länge auch VR6

ARP 2000 5/16 Zoll Pleuelschrauben in 38,1 Länge auch VR6

Article number: 200-6210

Do you have questions about the product? Just start the chat, we will help you with your product selection.

Questions & Answers

Questions & Answers

Fits for Fits for

Fits for

Volkswagen Corrado Type 53i | Year built 1988-1995 2.8 VR6 AAA | 174 hp (128 kW)
Volkswagen Corrado Type 53i | Year built 1988-1995 2.9 VR6 ABV | 190 hp (140 kW)
Volkswagen Golf III (Type 1H) | Year built 1991-1997 2.8 VR6 AAA | 174 hp (128 kW)
Volkswagen Golf III (Type 1H) | Year built 1991-1997 2.9 VR6 ABV | 190 hp (140 kW)
Volkswagen Sharan I (Type 7M8) | Year built 1995-2010 2.8 VR6 AAA | 174 hp (128 kW)
Volkswagen Sharan I (Type 7M8) | Year built 1995-2010 2.8 VR6 AMY | 174 hp (128 kW)
Volkswagen Sharan I (Type 7M9) | Year built 2000-2010 2.8 VR6 AYL | 204 hp (150 kW)
