DSG DQ500 gearbox Catchtank BAR-TEK®

Product number: 21rs430

Manufacturer: BAR-TEK®

Catchtank

Smoother engine running
Maintenance-free
CNC milled

€198.40

Prices incl. VAT plus shipping costs

Immediate delivery!

Ask a question about this product

Worldwide express delivery

30-day return policy

Certified Online Shop

Made for High-Boost

Bank transfer

Quick Links

Made in Germany

Description Description

Description

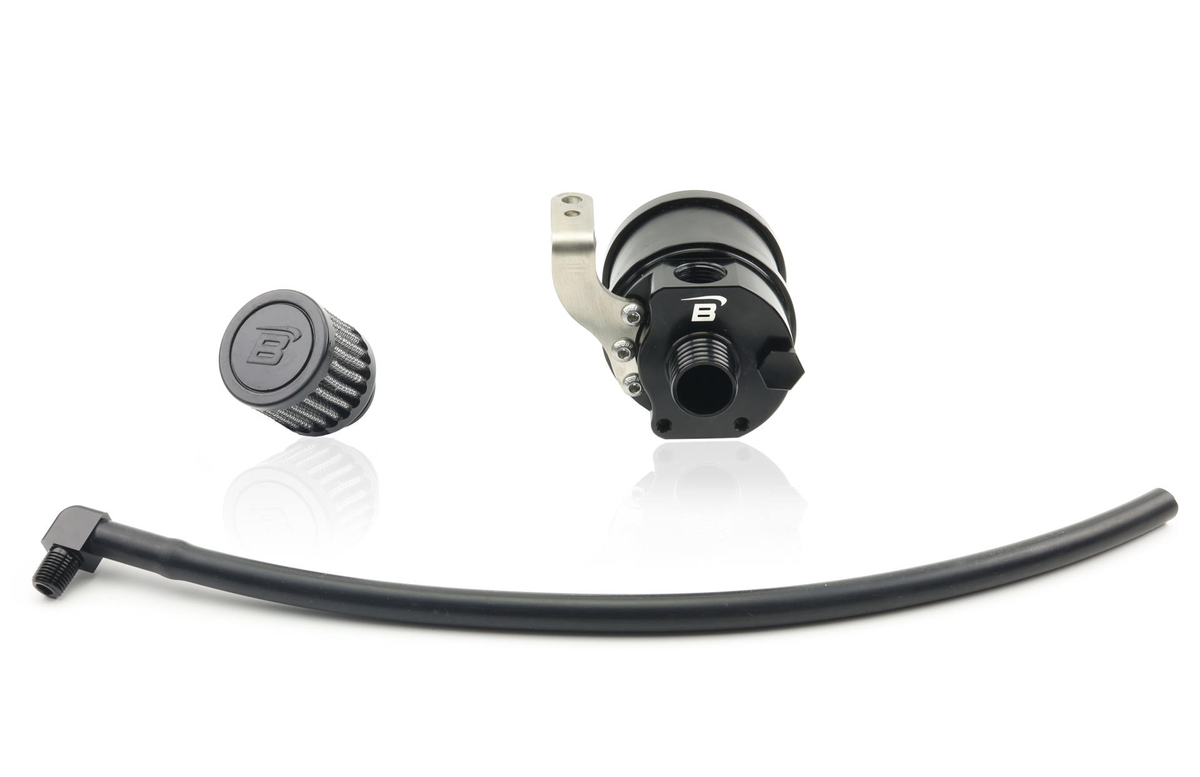

2.5L TFSI catchtank for Audi RS3 8V & TTRS 8S DQ500 BAR-TEK®

Our transmission oil catchtank for your 2.5 litre TFSI as in the Audi RS3 8V and TTRS puts an end to the oil in the entire engine compartment! The crankcase ventilation is made of plastic as standard. The transmission oil can expand here and the resulting oil vapours can escape. However, the oil splashes uncontrollably through the engine compartment as soon as the system is overloaded.

Clogged crankcase ventilation and dirty and coked intake valves and throttle valves are also typical of the standard design. You will then notice a significant drop in performance, which is particularly annoying in tuned cars. This can no longer happen to you with our 2.5 litre TFSI catchtank!

Optimised catchtank for the Audi RS3 8V & TTRS 8S DQ500

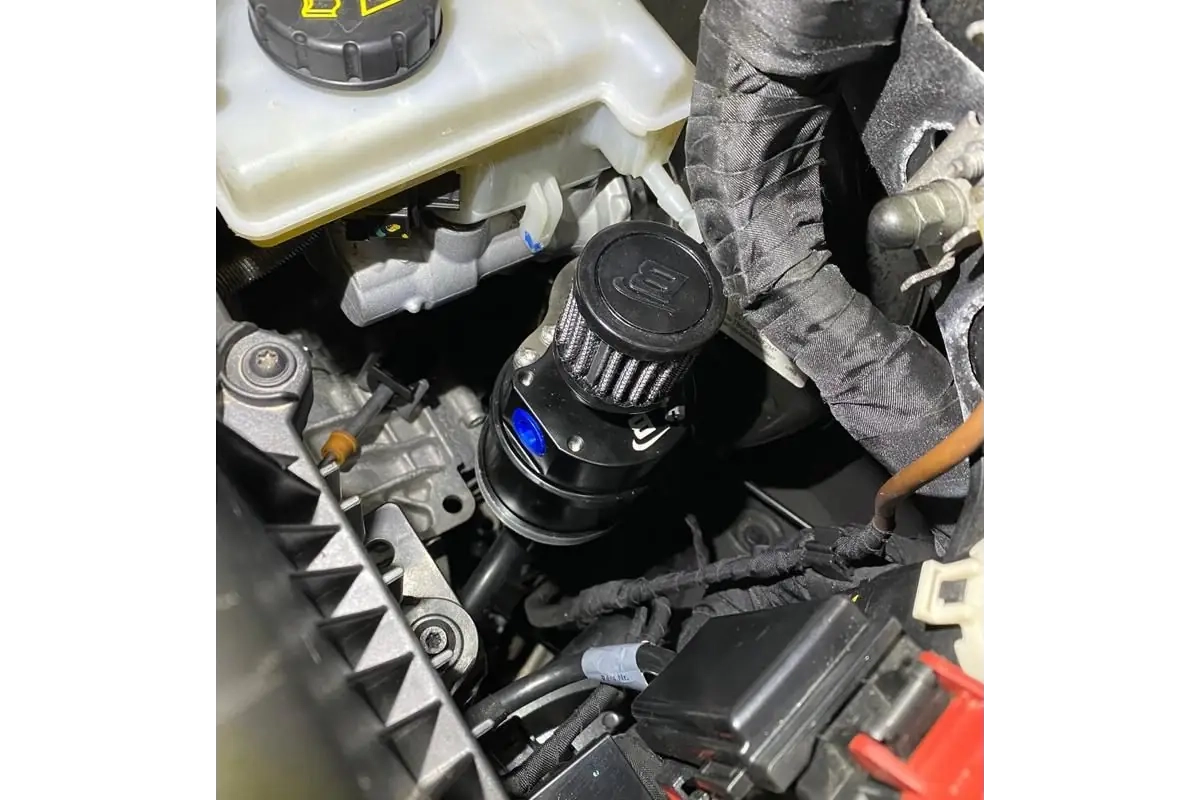

Our catchtank system for the transmission oil is easy to install in your RS3 or TTRS and is also quite compact and maintenance-free thanks to the return adapter. Thanks to its features, the additional tank ensures smooth engine running and the usual high performance.

The Catch tank collects the fluids that escape from the gearbox. At the same time, the trapped gases are channelled out through a filter. However, it only allows the fluids to enter the can at a certain angle. This prevents the fluids from splashing through the filter. The gear oil then simply flows back again.

Thanks to this drain, you don't have to constantly empty the oil collector catch tank. The result is cleaner combustion and increased knock resistance of the fuel-air mixture, and therefore smoother engine running overall.

Features:

Smoother engine running
Protects against coking
CNC-milled aluminium catchtank
Black anodised finish with logo
Cotton filter with logo

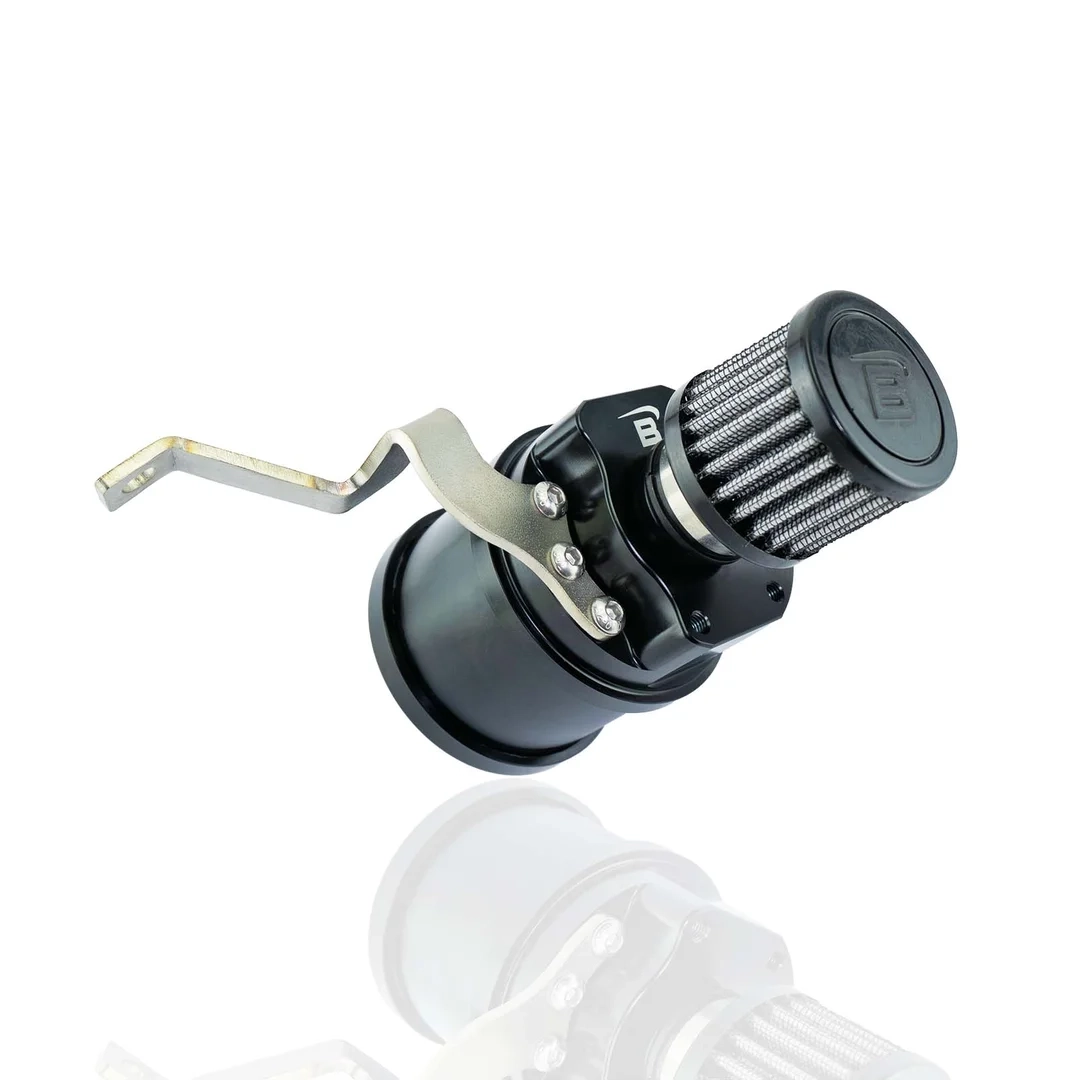

Laser-cut bracket
Easy to clean, prevents transmission fluid from escaping.
Allows trapped gases to escape.
Maintenance free
The drain prevents the catchtank from having to be constantly emptied.

Manufacturer

Information about the manufacturer

BAR-TEK®

BAR-TEK Motorsport GmbH

Im Rauschen Auel 3, 51491 Overath-Brombach, Germany

info@bar-tek.com

Do you have questions about the product? Just start the chat, we will help you with your product selection.

Questions & Answers

Fits for Fits for

Fits for

A3 / S3 / RS3 | 8V | Year built 2012-2020 2 Engines

Engine	Engine code
2.5 TFSI (EA855 evo)	DAZA \| 400 hp (294 kW)
2.5 TFSI (EA855 evo)	DNWA \| 400 hp (294 kW)

A3 / S3 / RS3 | 8Y | Year built 2020-> 7 Engines

Engine	Engine code
2.5 TFSI (EA855 evo)	DNWB \| 390 HP (287 kW)
2.5 TFSI (EA855 evo)	CZGB \| 367 hp (270 kW)
2.5 TFSI (EA855 evo)	DAZA \| 400 hp (294 kW)
2.5 TFSI (EA855 evo)	DNWA \| 400 hp (294 kW)
2.5 TFSI (EA855 evo)	DXHB \| 400 hp (294 kW)
2.5 TFSI (EA855 evo)	DNWC \| 400 hp (294 kW)
2.5 TFSI (EA855 evo)	DNWD \| 407 PS (299 kW)

Q3 / RS Q3 | 2. Gen. (Typ F3) | Year built 2018–2025 2 Engines

Engine	Engine code
2.5 TFSI (EA855 evo)	DAZA \| 400 hp (294 kW)
2.5 TFSI (EA855 evo)	DNWA \| 400 hp (294 kW)

TT / TTS / TT RS | FV/8S | Year built 2014-> 5 Engines

Engine	Engine code
2.5 TFSI (EA855 evo)	DNWB \| 390 HP (287 kW)
2.5 TFSI (EA855 evo)	CZGB \| 367 hp (270 kW)
2.5 TFSI (EA855 evo)	DAZA \| 400 hp (294 kW)
2.5 TFSI (EA855 evo)	DNWC \| 400 hp (294 kW)
2.5 TFSI (EA855 evo)	DNWA \| 400 hp (294 kW)
