2.0L TFSI EA113 drilling template for RS3 & TTRS injectors

Product number: 21tf448
BAR-TEK® template
  • for 2.0L TFSI
  • for RS3 injectors in TFSI
  • Optimal drilling template
  • Solid metal

€41.98

Prices excl. VAT plus shipping costs

Ready to ship immediately!

icon/general/ico_circle_check-inner
Worldwide shipping
icon/general/ico_circle_check-inner
Shop safely
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Rectangle Made in Germany
Description

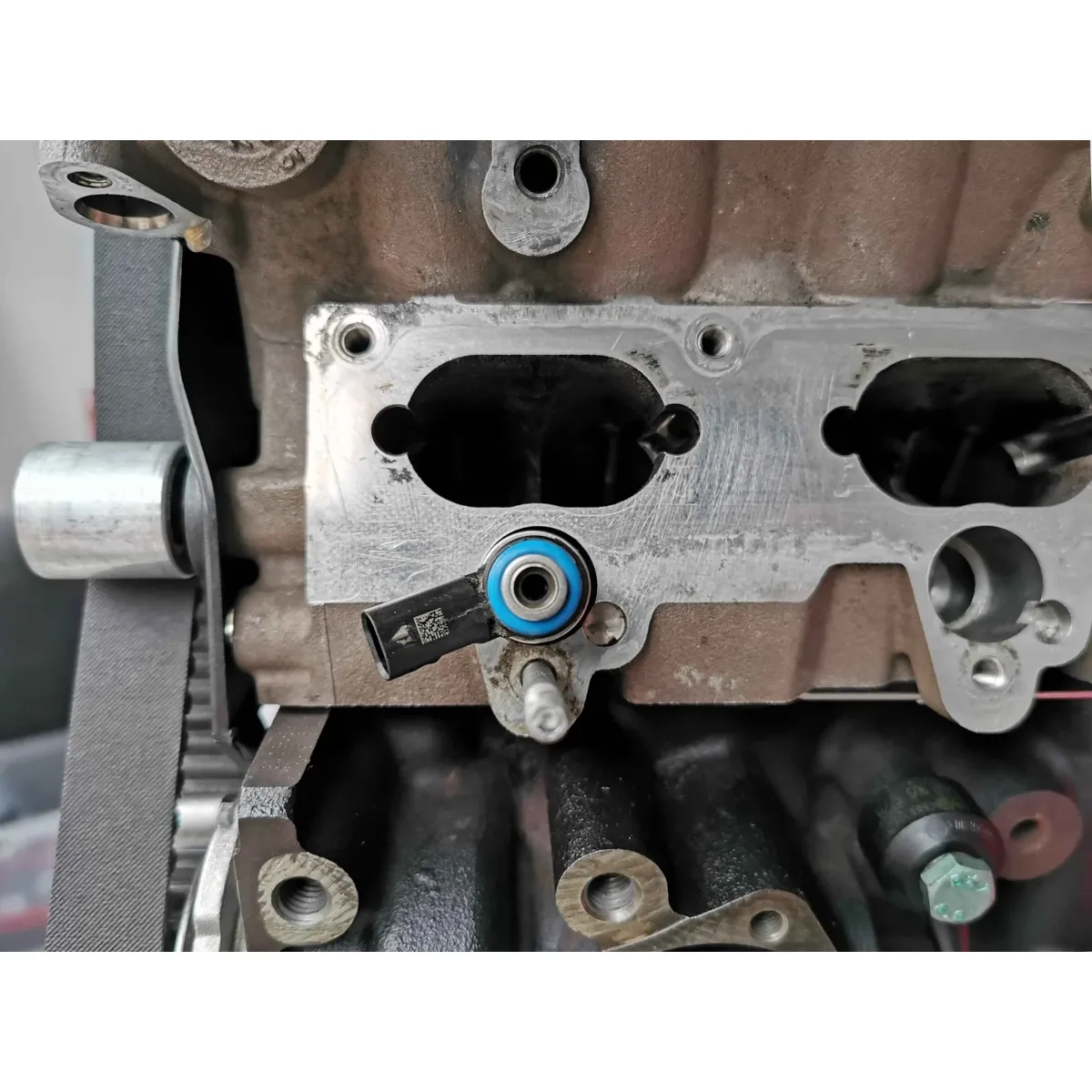

On the 2.0L TFSI, the RS3 jets must be offset in the head. As the small TFSI does not have a hole there, the plug collides with the head and the jets do not sit far enough in the combustion chamber. Therefore we have to drill a small hole in the head.

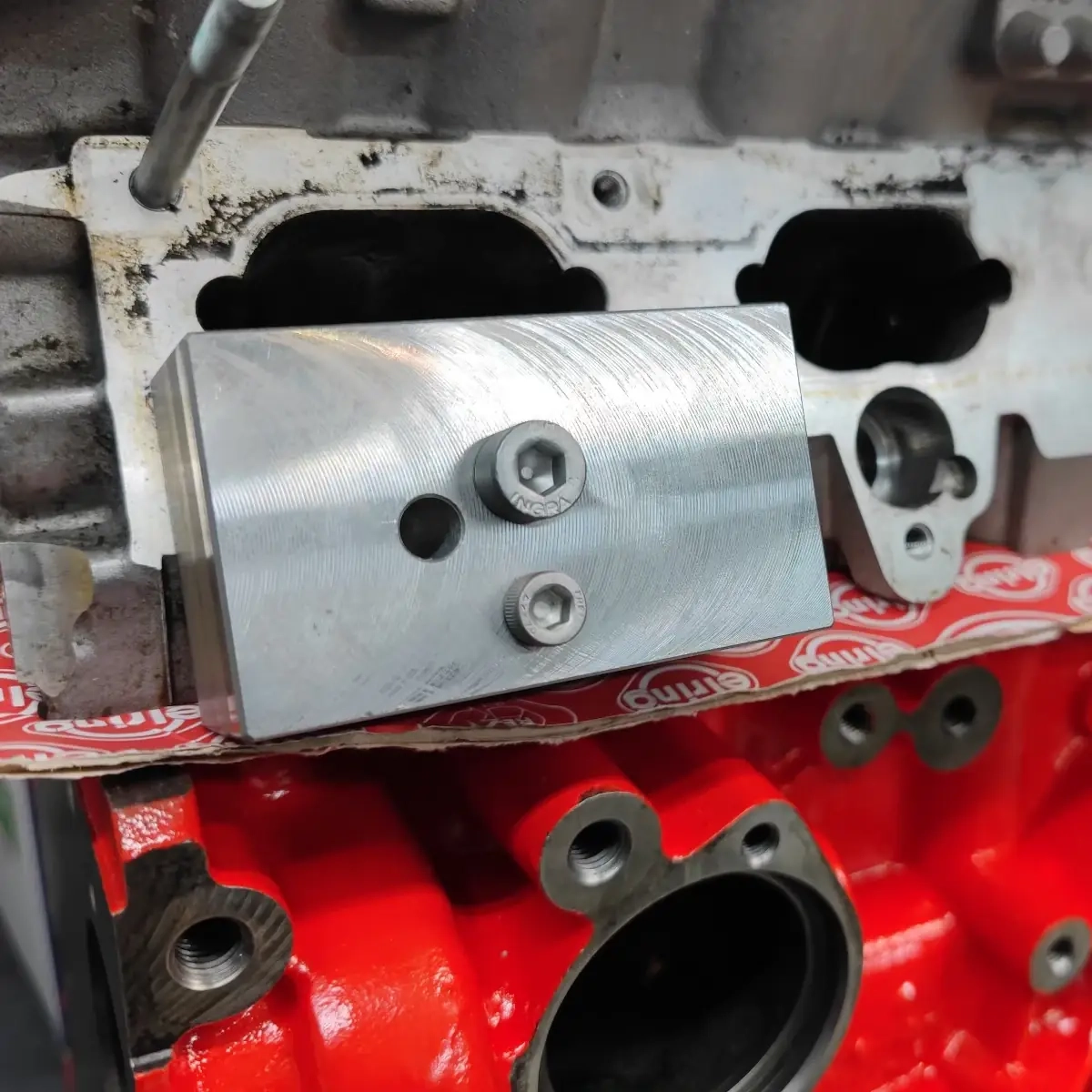

The template is mounted on the TFSI head, after which the hole for the injectors can be drilled precisely.

The template is made of solid metal and therefore fits perfectly on the head.

Installation direction as for the RS3 cylinder head.

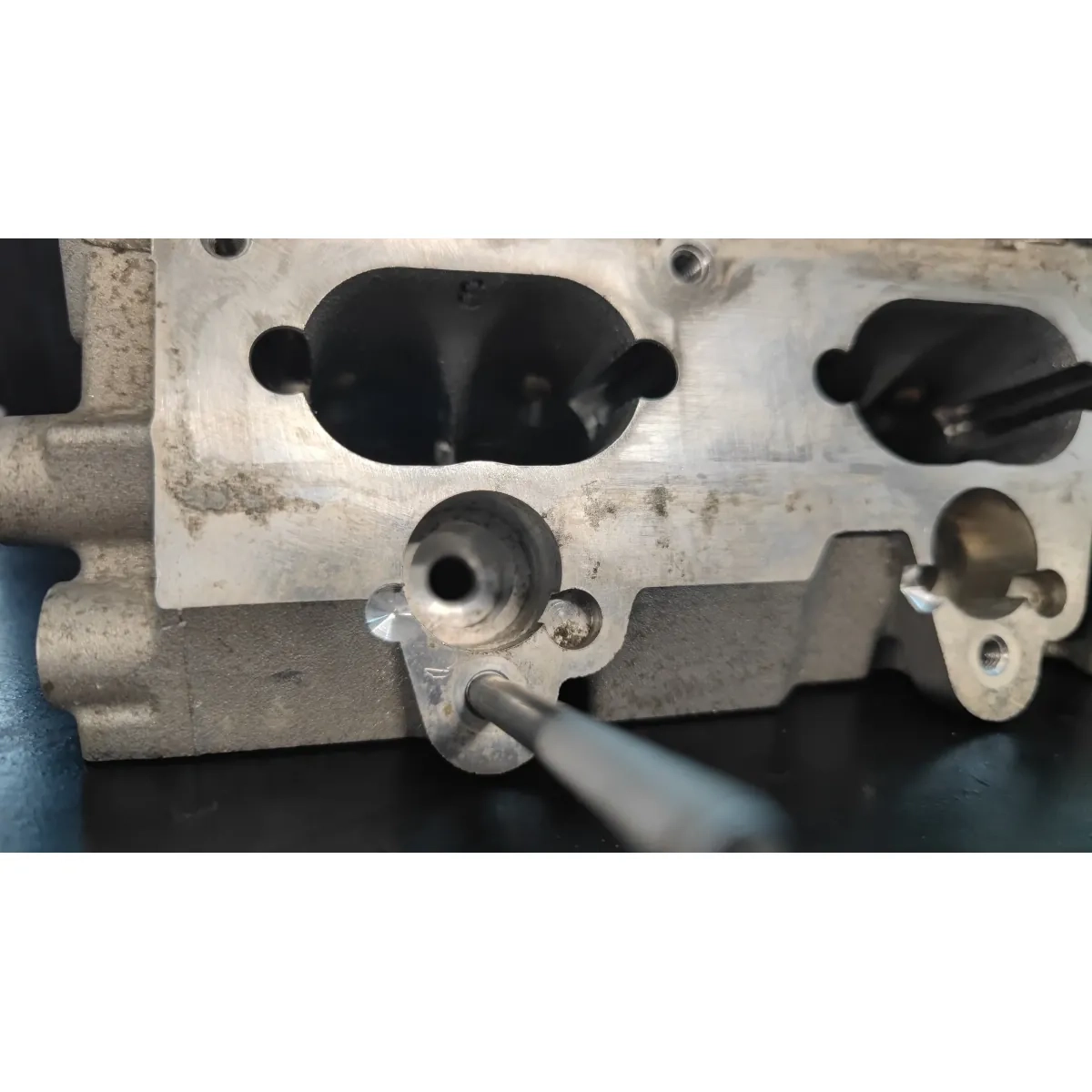

Please drill approx. 5 to 7 mm deep with an 8 mm drill bit.

Do you have questions about the product? Just start the chat, we will help you with your product selection.
direct reply in chat
Fits for
Engine Engine code
2.0 FSI (EA113) AXW | 150 PS (110 kW)
2.0 FSI (EA113) BLR | 150 PS (110 kW)
2.0 FSI (EA113) BLX | 150 PS (110 kW)
2.0 FSI (EA113) BVY | 150 PS (110 kW)
2.0 TFSI (EA113) AXX | 200 PS (147 kW)
2.0 TFSI (EA113) BPY | 200 PS (147 kW)
2.0 TFSI (EA113) BWA | 200 PS (147 kW)
2.0 TFSI (EA113) CDLA | 265 PS (195 kW)
Engine Engine code
2.0 FSI (EA113) BLR | 150 PS (110 kW)
2.0 FSI (EA113) BVY | 150 PS (110 kW)
2.0 TFSI (EA113) BWA | 200 PS (147 kW)
2.0 TFSI (EA113) CDLA | 265 PS (195 kW)
Engine Engine code
2.0 TFSI (EA113) BWA | 200 PS (147 kW)
Engine Engine code
2.0 FSI (EA113) AXW | 150 PS (110 kW)
2.0 FSI (EA113) BLR | 150 PS (110 kW)
2.0 FSI (EA113) BLX | 150 PS (110 kW)
2.0 FSI (EA113) BVY | 150 PS (110 kW)
2.0 TFSI (EA113) AXX | 200 PS (147 kW)
2.0 TFSI (EA113) BPY | 200 PS (147 kW)
2.0 TFSI (EA113) BWA | 200 PS (147 kW)
2.0 TFSI (EA113) BYD | 230 PS (169 kW)
2.0 TFSI (EA113) CDL | 240 PS (177 kW)
Engine Engine code
2.0 TFSI (EA113) AXX | 200 PS (147 kW)
2.0 TFSI (EA113) BWA | 200 PS (147 kW)
