2.0 TSI EA888 V3 upgrade turbocharger K04 up to 500 hp Turbo-Total

Product number: 21tf197

Manufacturer: Turbo-Total

Turbo Total upgrade Loader

up to 500 hp
Finely balanced
Plug & Play
3-year warranty!

€2,999.98

€3,559.95*

Prices incl. VAT plus shipping costs

Delivery time 1 - 3 days

Worldwide shipping

Shop safely

Certified Online Shop

Made for High-Boost

Pay in advance

Quick Links

Authorized Dealer

3 Years Warranty

Description

Description

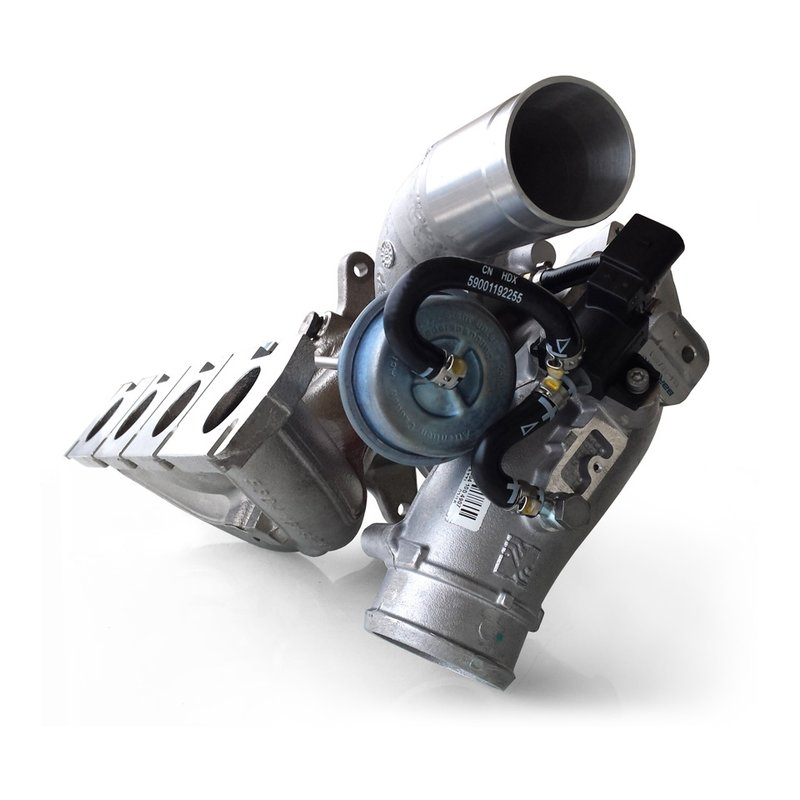

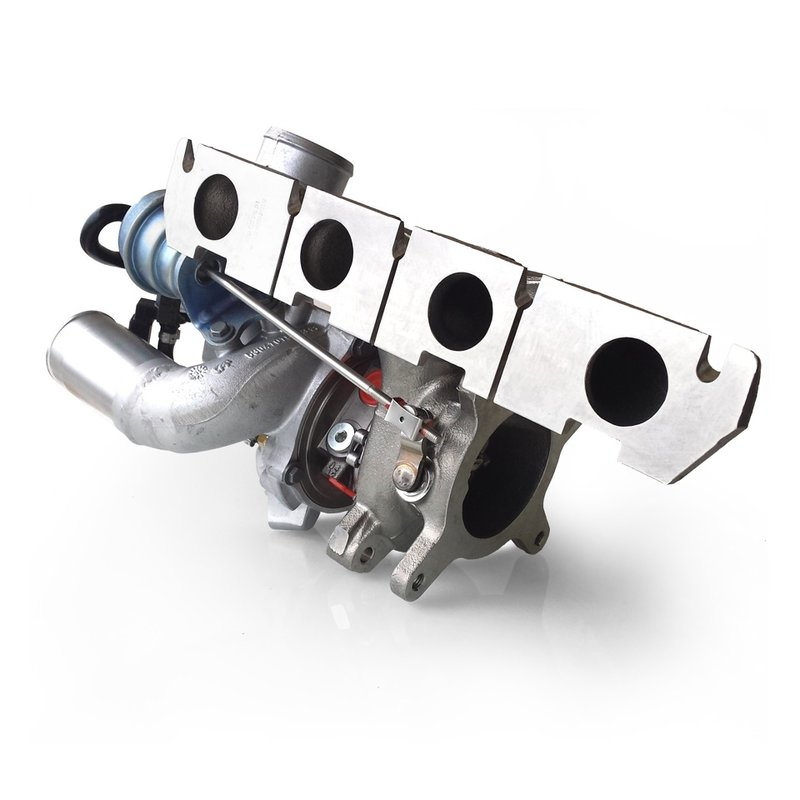

V2 K04 upgrade turbocharger from Turbo-Total up to 500 hp for 2.0 TSI EA888 engines with chain.

With our V3 upgrade turbocharger we have a completely revised turbo with which you can achieve an engine output of up to 500 hp. Suitable components such as e. g. Exhaust system with downpipe, high-pressure pump, injection nozzles and suitable software tuning are required for 500 hp. To ensure that the whole thing lasts and is suitable for everyday use, reinforced conrods with forged pistons must be installed. Here we recommend: our Mahle - conrods & piston set. See below under accessories!

This is what our V3 upgrade turbocharger has to offer

Large milled V2 compressor wheel with optimised geometry
CNC milled and flow-optimised compressor housing
Large rotor shaft, which contributes to stability
Optimised turbine housing
Reinforced 360° bearing for even more durability
Reinforced actuator, therefore no fluttering and always a stable engine boost pressure
Turbocharger balanced to the smallest tolerances
Adapted pressure side for EA888 chain motor
Lock for crankcase ventilation
The turbocharger is a new part, not an exchange or remanufactured supercharger
Plug&Play fits in 2.0 TSI EA888 engines
New gasket, stud bolt and copper nuts are included free of charge!

Supplied complete with manifold, actuator and boost pressure control valve.

We recommend replacing at least the oil supply line!

Suitable for:

2.0 TSI EA888 Engines with the engine codes: CAWB, CCZA and CCZB.

Our V2 upgrade turbocharger is based on KKK K04 and is therefore a plug & play fit for the typical TSI downpipe intake and pressure lines.

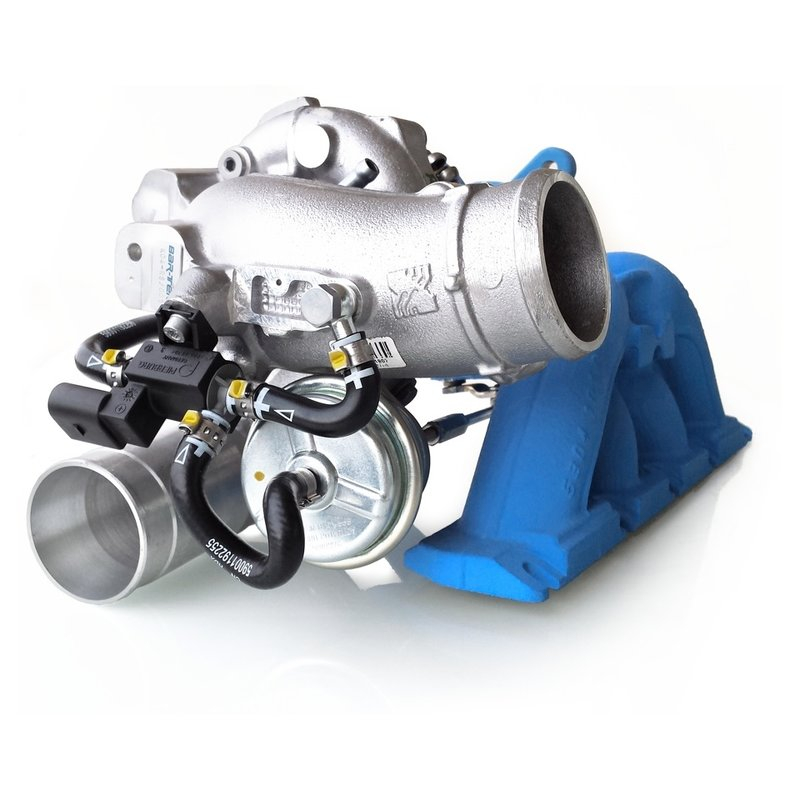

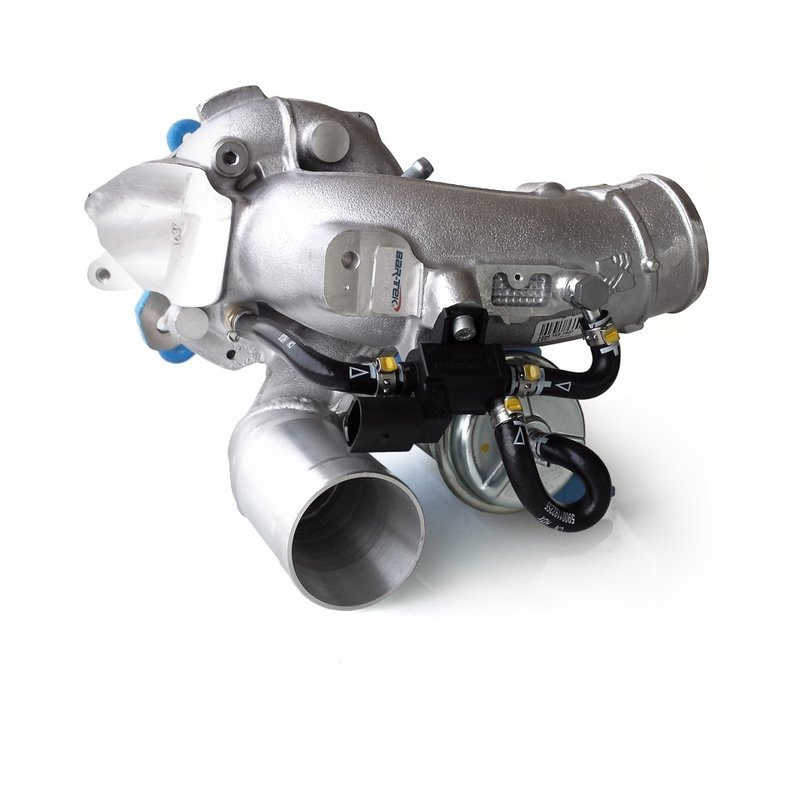

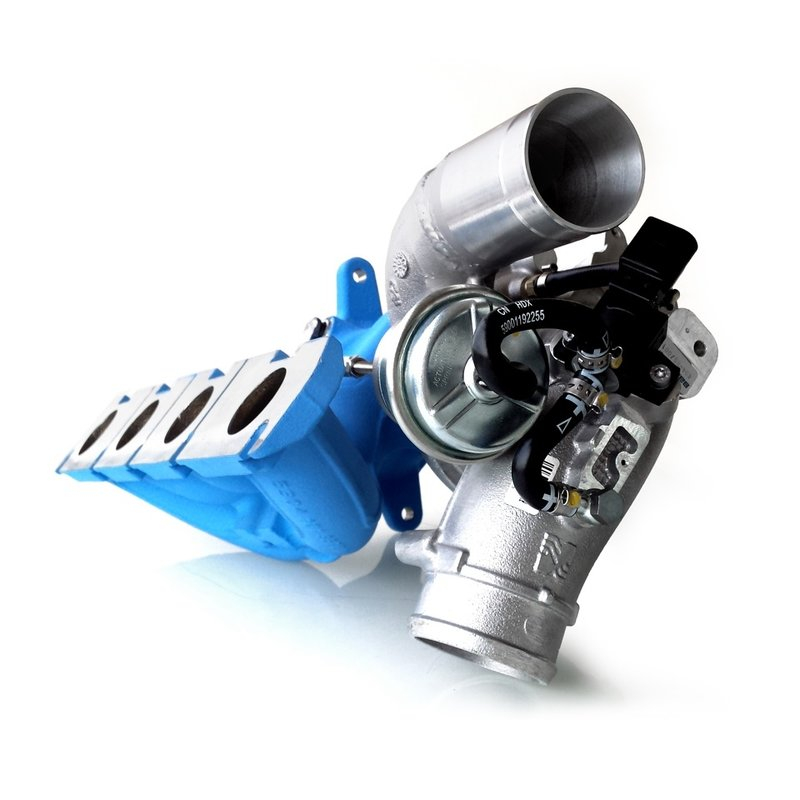

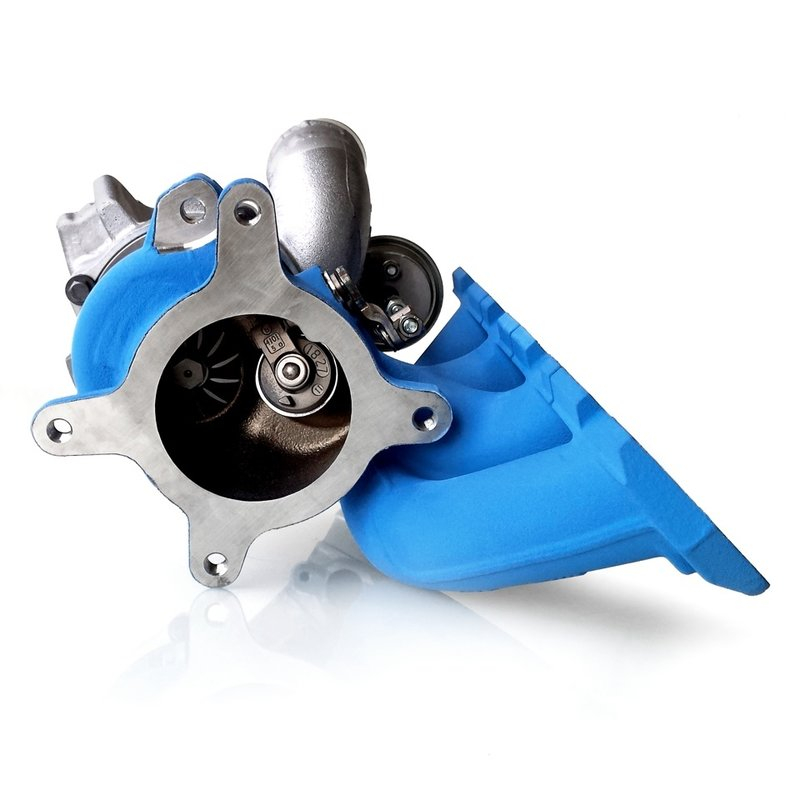

Blue coating of the manifold is not included in the price:

The ceramic coating is better than any heat tape.
The process is still applied individually by hand to each component.
All kinds of components such as manifolds or turbocharger exhaust turbines can be coated.
First, a base coating is applied in a beige colour.
Then up to 14 different colours can be selected.
The price is calculated according to effort and colour and starts at 250 euros upwards.

Advantages of plasma ceramic coating:

Better properties than ordinary heat tape
Durable up to approx. 900°C
Reduction of the surface temperature by approx. 33
Up to 50°C lower engine compartment temperature
High effect with low weight (0.3 mm thick)
More effective engine performance and service life
Improves "spool up" (acceleration) of the turbocharger
Faster cooling of the entire engine
3-year warranty (clean ceramic coating with soap only, no brake cleaner!)
Choice of 14 different colours.

(No replacement necessary)

We now offer a 3-year guarantee on this Turbo-Total upgrade- turbocharger! As we are convinced of our products beyond measure, we offer you this extra service. Thanks to our more than 30 years of experience with the Turbo-Total and the constant exchange and close co-operation with Garrett, we can offer you this extra service. You can find more information about the warranty here.

Do you have questions about the product? Just start the chat, we will help you with your product selection.

Questions & Answers

Fits for

Fits for

A3 / S3 / RS3 | 8P, 8PA | Year built 2003-2013 2 Engines

Engine	Engine code
2.0 TFSI (EA888)	CAWB \| 200 hp (147 kW)
2.0 TFSI (EA888)	CCZA \| 200 hp (147 kW)

Q3 / RS Q3 | 8U | Year built 2011-2018 3 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCTA \| 200 hp (147 kW)
2.0 TFSI (EA888)	CCZC \| 170 hp (125 kW)
2.0 TFSI (EA888)	CPSA \| 211 hp (155 kW)

TT / TTS / TT RS | 8J | Year built 2006-2014 3 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCZA \| 200 hp (147 kW)
2.0 TFSI (EA888)	CESA \| 211 hp (155 kW) - CA and USA
2.0 TFSI (EA888)	CETA \| 211 hp (155 kW)

Alhambra | II (Type 7N) | Year built 2010-2022 1 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCZA \| 200 hp (147 kW)

Altea | I | Year built 2004-2015 1 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCZB \| 211 hp (155 kW)

Leon | II (Type 1P) | Year built 2005-2012 1 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCZB \| 211 hp (155 kW)

Eos | I (Type 1F) | Year built 2006-2015 2 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCTA \| 200 hp (147 kW)
2.0 TFSI (EA888)	CCZB \| 211 hp (155 kW)

Golf | VI (Type 5K1) | Year built 2008-2012 2 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCZ \| 211 hp (155kW)
2.0 TFSI (EA888)	CCZB \| 211 hp (155 kW)

Jetta / Vento / Bora | V - Jetta/Vento/Bora/Sagitar - (Type 1K2/1KM) | Year built 2005-2010 1 Engines

Engine	Engine code
2.0 TFSI (EA888)	CAWB \| 200 hp (147 kW)

Jetta / Vento / Bora | VI - Jetta/Vento/Sagitar/Lavida - (Type 162) | Year built 2010-2018 1 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCZA \| 200 hp (147 kW)

Passat | B6 (Type 3C) | Year built 2005-2010 2 Engines

Engine	Engine code
2.0 TFSI (EA888)	CAWB \| 200 hp (147 kW)
2.0 TFSI (EA888)	CCTA \| 200 hp (147 kW)

Passat | B7 (Type 3C/36) | Year built 2010-2015 1 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCZB \| 211 hp (155 kW)

Passat | CC (Type 35) | Year built 2008-2016 3 Engines

Engine	Engine code
2.0 TFSI (EA888)	CAWB \| 200 hp (147 kW)
2.0 TFSI (EA888)	CCTB \| 170 hp (125 kW)
2.0 TFSI (EA888)	CCZB \| 211 hp (155 kW)

Scirocco | III (Type 13) | Year built 2008-2017 2 Engines

Engine	Engine code
2.0 TFSI (EA888)	CAWB \| 200 hp (147 kW)
2.0 TFSI (EA888)	CCZB \| 211 hp (155 kW)

Sharan | II (Type 7N) | Year built 2010-2022 1 Engines

Engine	Engine code
2.0 TFSI (EA888)	CCZA \| 200 hp (147 kW)

T / Bus | T6 | Year built 2015-> 1 Engines

Engine	Engine code
2.0 TFSI (EA888)	CJKA \| 204 hp (150 kW)

Tiguan | I (Type 5N) | Year built 2007-2016 8 Engines

Engine	Engine code
2.0 TFSI (EA888)	CAWA \| 170 hp (125 kW)
2.0 TFSI (EA888)	CAWB \| 200 hp (147 kW)
2.0 TFSI (EA888)	CCTA \| 200 hp (147 kW)
2.0 TFSI (EA888)	CCTB \| 170 hp (125 kW)
2.0 TFSI (EA888)	CCZA \| 200 hp (147 kW)
2.0 TFSI (EA888)	CCZB \| 211 hp (155 kW)
2.0 TFSI (EA888)	CCZC \| 170 hp (125 kW)
2.0 TFSI (EA888)	CCZD \| 180 hp (132 kW)
