2.0L TSI EA888 V1 upgrade Turbocharger K04 up to 400 HP Turbo-Total

Product number: 21tf196
Manufacturer: BAR-TEK®
Turbo Total Upgrade Turbo
  • up to 400 HP
  • Finely balanced
  • Plug & Play
  • 3 Years Warranty!

€2,397.95

Low stock levels

Immediate delivery!

icon/general/ico_circle_check-inner
Worldwide express delivery
icon/general/ico_circle_check-inner
30-day return policy
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Group 6 Authorized Dealer
3 Years Warranty
Description

V1 K04 upgrade Turbocharger from Turbo-Total up to 400 HP for 2.0L TSI EA888 engines with chain.

With our V1 upgrade turbocharger you replace the small original BorgWarner turbo and can reach an engine power up to 400hp. Matching components like exhaust system with Downpipe, high pressure pump, injectors and matching software tuning are needed for 400 HP.

This is what our V1 upgrade turbocharger has to offer

  • Upgrade K04 supercharger
  • Milled compressor impeller with perfectly optimized geometry
  • Reinforced 360° support for even more durability
  • Turbocharger was balanced to smallest tolerances
  • Adapted pressure side for EA888 chain engine
  • Closure for crankcase ventilation
  • The turbocharger is a new part, no exchange or remanufactured charger
  • Plug&Play fit in 2.0L TSI EA888 engines
  • New gasket, stud bolt and copper nuts are included for free!

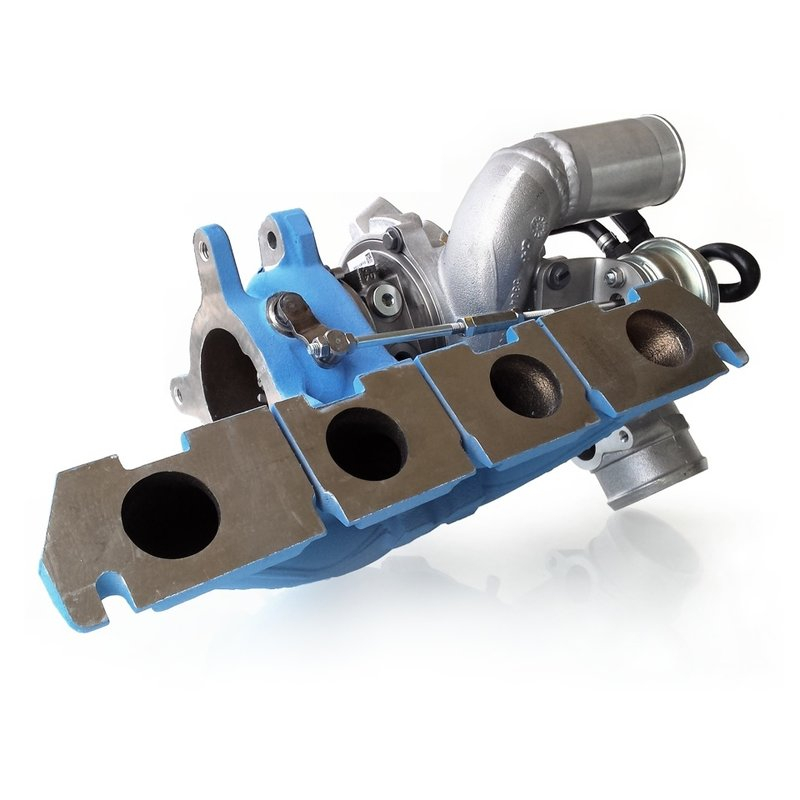

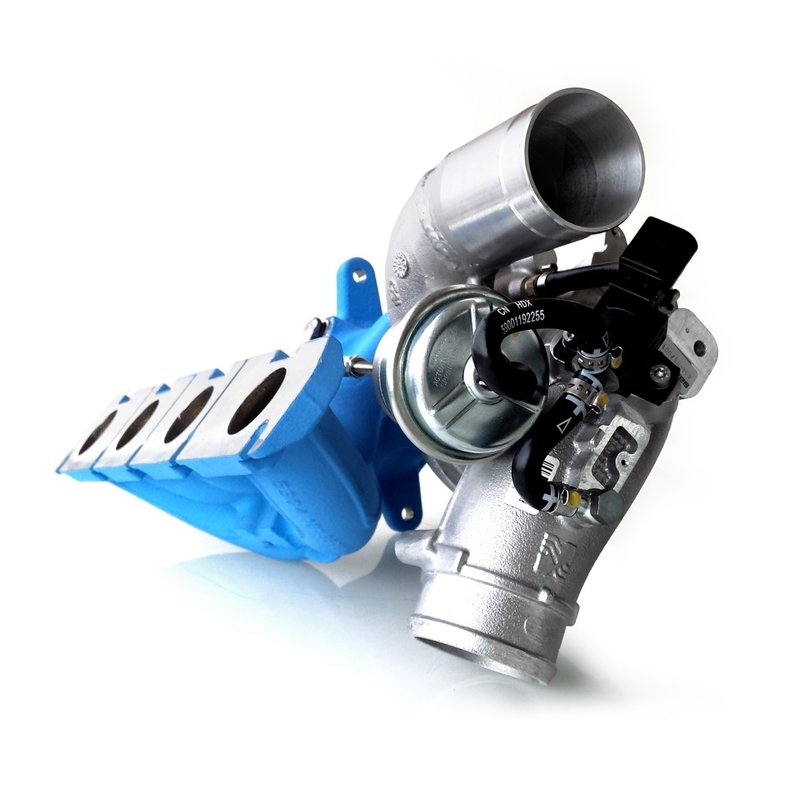

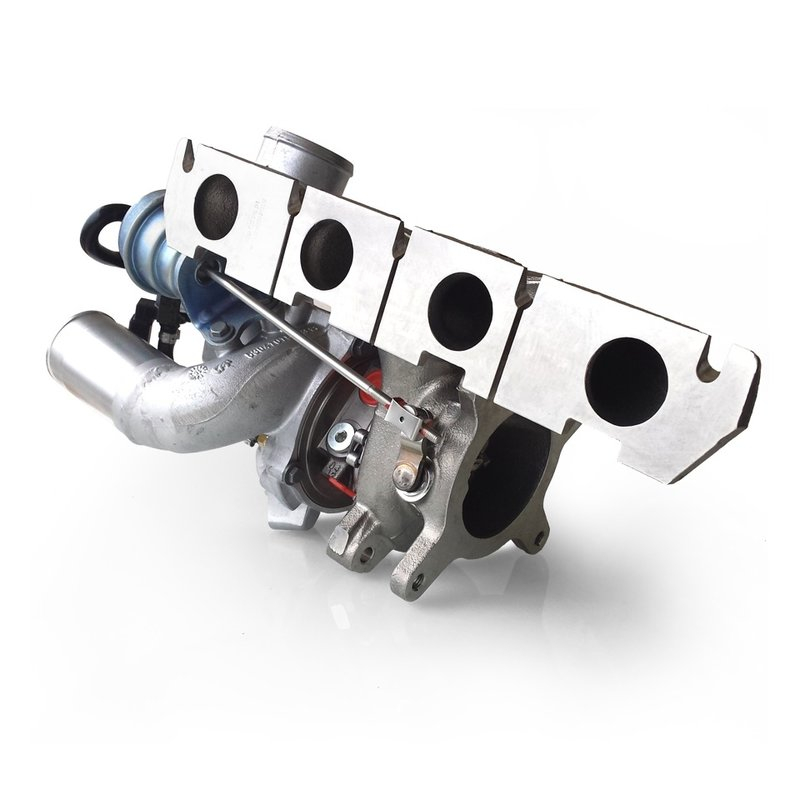

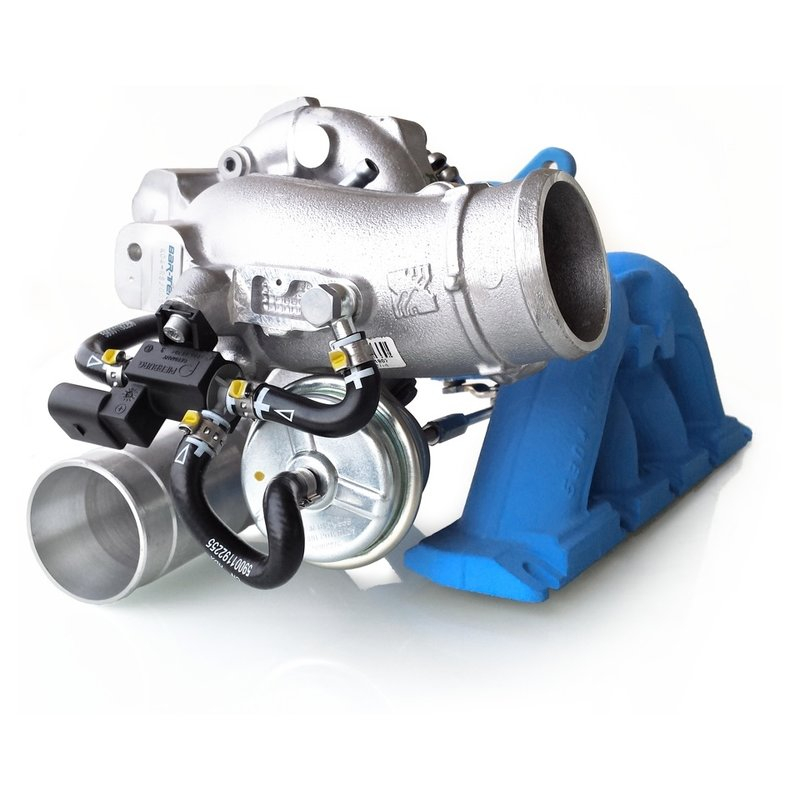

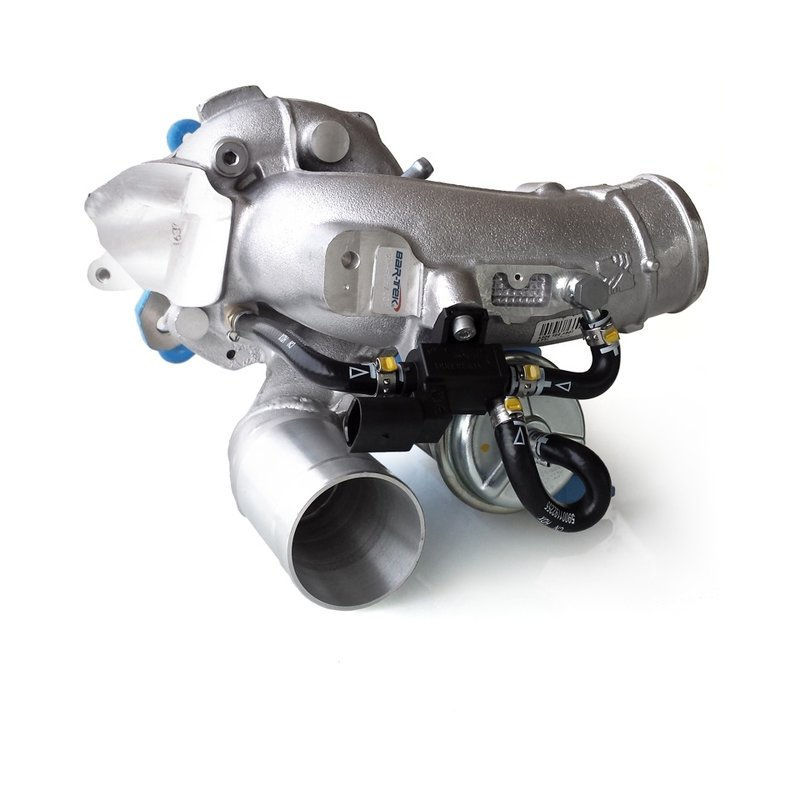

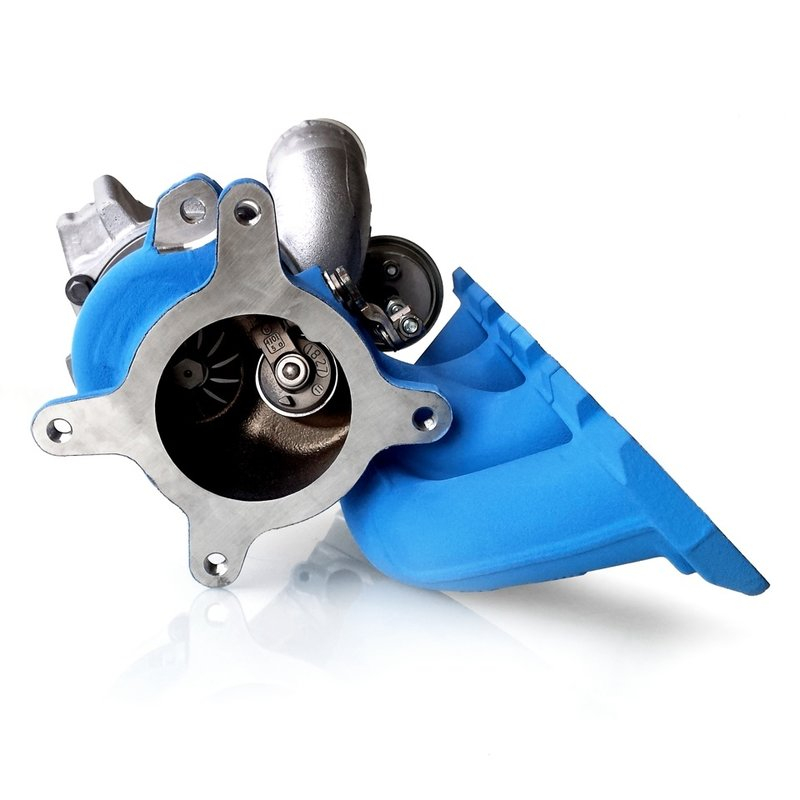

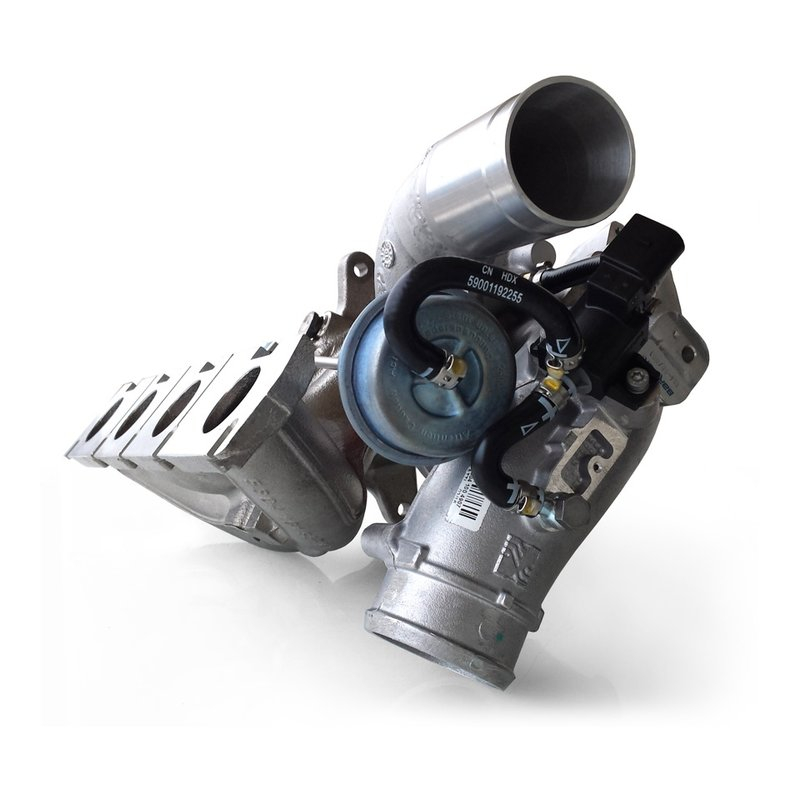

Delivery complete with manifold, pressure can and boost pressure control valve.

We recommend at least the oil supply line to renew with!

Suitable for:

  • 2.0L TSI EA888 engines with engine codes: CAWB, CCZA and CCZB.

Our V1 upgrade turbocharger is based on KKK K04 and is therefore plug&play to the TSI typical downpipes, intake as well as pressure lines fit.

Blue coating of the manifold is not included in the price:

Better than any heat tape is the ceramic coating.
The process is still applied by hand individually on each component.
All kinds of components such as manifolds or turbocharger exhaust turbines can be coated.
First a base coating in beige color is applied.
After that up to 14 different colors can be chosen.
The price is calculated according to effort and color and starts at 250 euros upwards.

Advantages of Plasma Ceramic coating:

  • Better properties than ordinary heat tape
  • Durable up to approx. 900°C
  • Reduction of surface temperature by approx. 33
  • Up to 50°C lower engine compartment temperature
  • High effect with low weight (0.3mm thickness)
  • More effective engine performance and life
  • Improves "spool up" (acceleration) of the turbocharger
  • Faster cooling of the entire engine
  • 3 years warranty (Ceramic coating only clean with soap, no brake cleaner!)
  • Choice of 14 different colors.

(No exchange necessary)

We now offer a 3-year warranty on this Turbo-Total Upgrade-Turbocharger! Since we are convinced of our product beyond measure, we offer you this extra service. Thanks to our more than 30 years of experience with the Turbo-Total and the constant exchange and close coorperation with Garrett, we can offer you this extra service. You can find more  information about the warranty here.

Do you have questions about the product? Just start the chat, we will help you with your product selection.
Fits for
  • Volkswagen Eos I (Type 1F) | Year built 2006-2015 2.0 TFSI (EA888) CCTA | 200 hp (147 kW)
  • Volkswagen Eos I (Type 1F) | Year built 2006-2015 2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
  • Volkswagen Golf VI (Type 5K1) | Year built 2008-2012 2.0 TFSI (EA888) CCZ | 211 hp (155kW)
  • Volkswagen Golf VI (Type 5K1) | Year built 2008-2012 2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
  • Volkswagen Jetta / Vento / Bora V - Jetta/Vento/Bora/Sagitar - (Type 1K2/1KM) | Year built 2005-2010 2.0 TFSI (EA888) CAWB | 200 hp (147 kW)
  • Volkswagen Jetta / Vento / Bora VI - Jetta/Vento/Sagitar/Lavida - (Type 162) | Year built 2010-2018 2.0 TFSI (EA888) CCZA | 200 hp (147 kW)
  • Volkswagen Passat B6 (Type 3C) | Year built 2005-2010 2.0 TFSI (EA888) CCTA | 200 hp (147 kW)
  • Volkswagen Passat B7 (Type 3C/36) | Year built 2010-2015 2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
  • Volkswagen Passat CC (Type 35) | Year built 2008-2016 2.0 TFSI (EA888) CCTB | 170 hp (125 kW)
  • Volkswagen Passat CC (Type 35) | Year built 2008-2016 2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
  • Volkswagen Scirocco III (Type 13) | Year built 2008-2017 2.0 TFSI (EA888) CAWB | 200 hp (147 kW)
  • Volkswagen Scirocco III (Type 13) | Year built 2008-2017 2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
  • Volkswagen Sharan II (Type 7N) | Year built 2010-2022 2.0 TFSI (EA888) CCZA | 200 hp (147 kW)
  • Volkswagen T / Bus T6 | Year built 2015–2019 2.0 TFSI (EA888) CJKA | 204 hp (150 kW)
  • Volkswagen Tiguan I (Type 5N) | Year built 2007-2016 2.0 TFSI (EA888) CCTA | 200 hp (147 kW)
  • Volkswagen Tiguan I (Type 5N) | Year built 2007-2016 2.0 TFSI (EA888) CCTB | 170 hp (125 kW)
  • Volkswagen Tiguan I (Type 5N) | Year built 2007-2016 2.0 TFSI (EA888) CCZA | 200 hp (147 kW)
  • Volkswagen Tiguan I (Type 5N) | Year built 2007-2016 2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
  • Volkswagen Tiguan I (Type 5N) | Year built 2007-2016 2.0 TFSI (EA888) CCZC | 170 hp (125 kW)
  • Volkswagen Tiguan I (Type 5N) | Year built 2007-2016 2.0 TFSI (EA888) CCZD | 180 hp (132 kW)
