1.8 & 2.0L TSI EA888 Gen.3 Upgrade Aluminium Oil Pan BAR-TEK®

Product number: 21tf206

Manufacturer: BAR-TEK®

Aluminium oil pan BAR-TEK®

Plus 2 liters of oil volume!
additional engine cooling by up to 15°C!
Milled from solid aluminium
With cooling fins

€595.95

Prices incl. VAT plus shipping costs

Low stock levels

Immediate delivery!

Worldwide shipping

Shop safely

Certified Online Shop

Made for High-Boost

Pay in advance

Quick Links

Made in Germany

Description

Description

BAR-TEK®® Racing aluminium with cooling fins for & engines. Oil pan 1.8 2.0 TSI EA888

The oil pan is milled from a solid block of aluminium CNC. Thanks to the elaborate machining on a CNC milling centre, we were able to realise great features such as e. g.:

Cooling fins over the entire surface.
optimum heat dissipation thanks to high-quality material.
Stiffening of the engine block with high-strength aluminium - instead of the original plastic oil pan.
more oil volume, which ensures a better oil supply.

The cooling fins and the high-quality aluminium significantly improve heat dissipation and therefore cooling. Furthermore, the aluminium oil pan is much more stable than the original plastic oil pan and therefore also stiffens the engine block.

Features of our BAR-TEK®® upgrade - oil pan:

Milled from solid aluminium and therefore more stable
Better heat dissipation due to aluminium
Better cooling through cooling fins
Elaborately CNC-milled (machining time 7.5 hours)
Very good workmanship, all surfaces face-milled
Lightweight, only 2.5 kg and ultra stable
Plus 2 litre oil volume for additional engine cooling by up to 15°C!

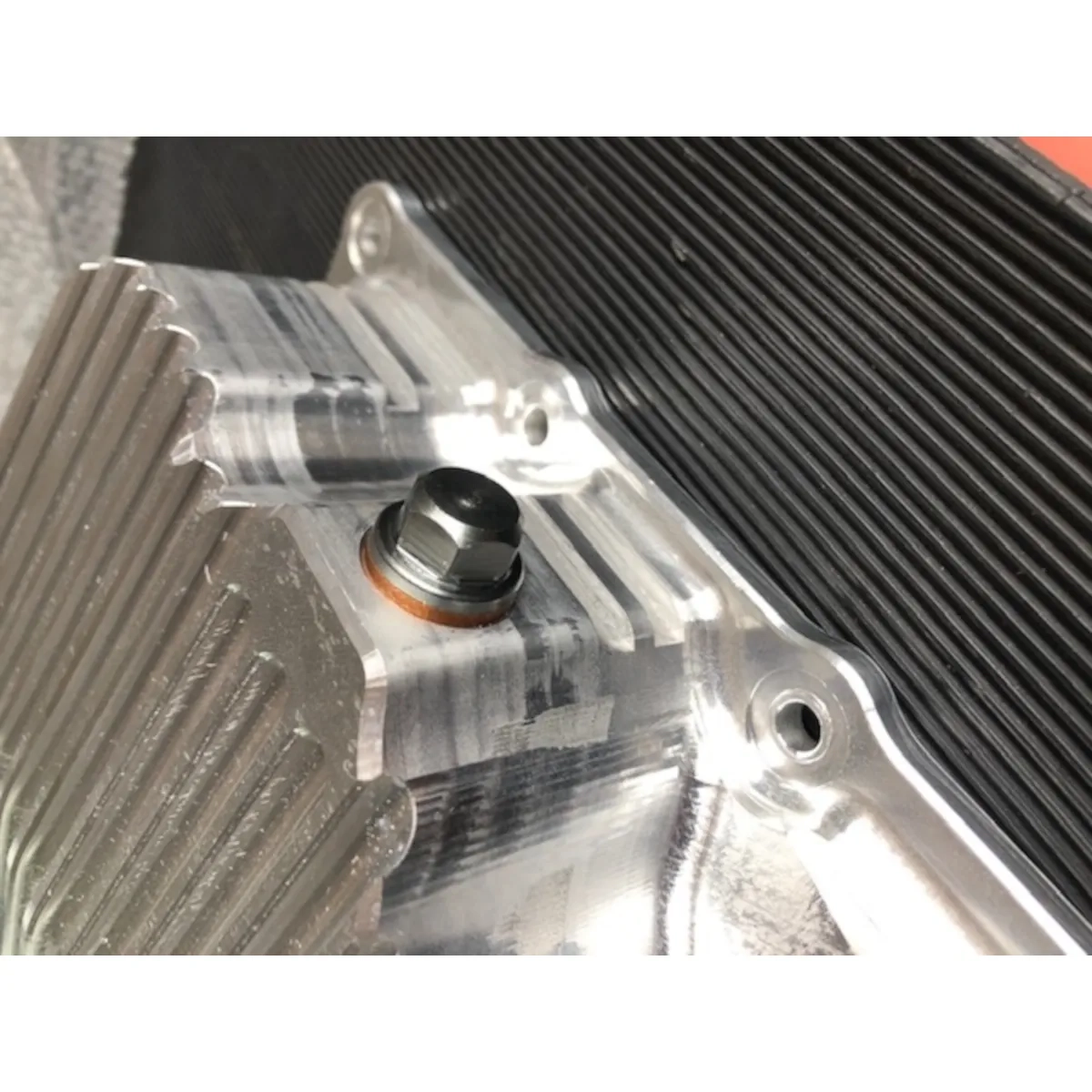

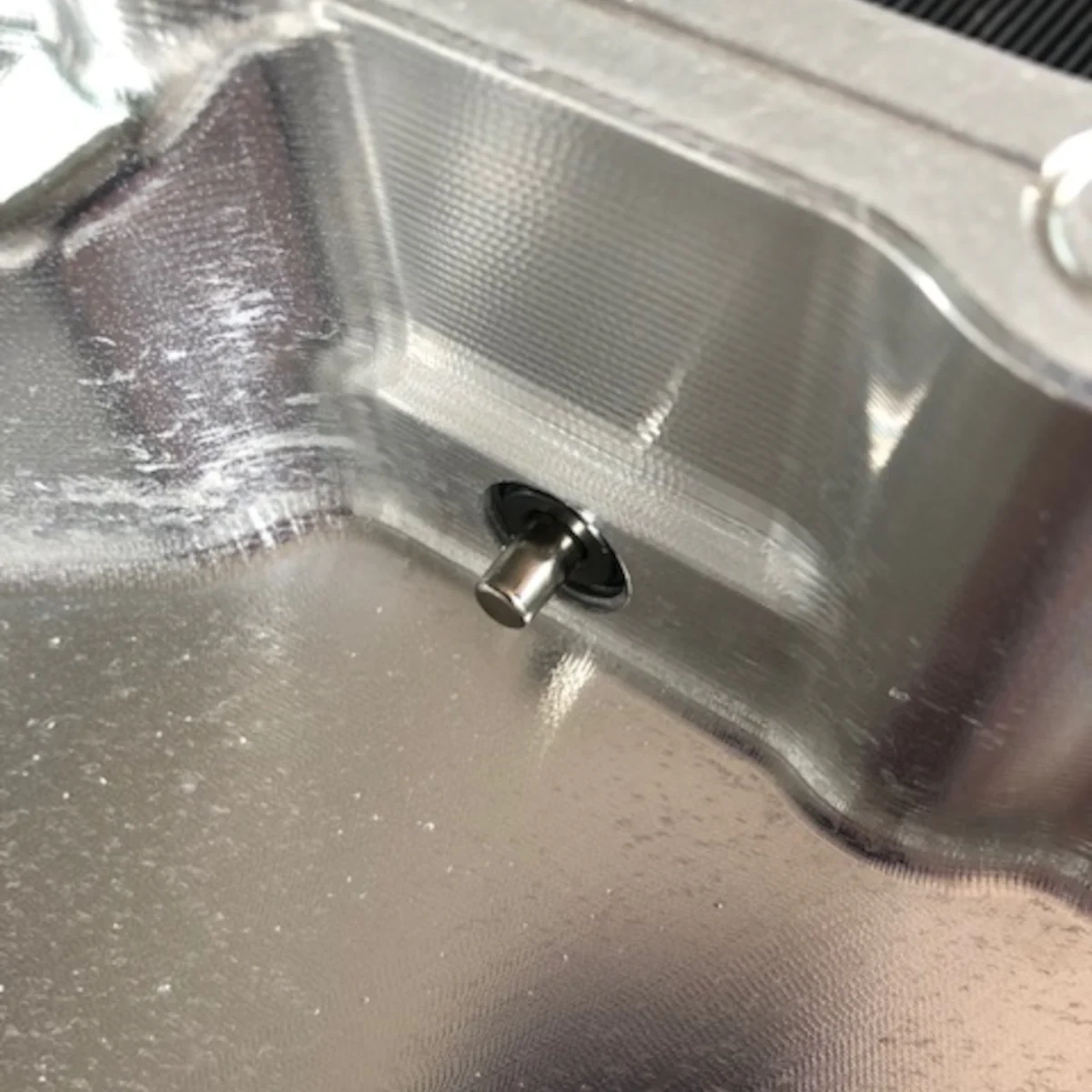

incl. our magnetic oil drain plug

The underbody panelling must be underlaid with spacer sleeves.

The oil pan is 10 mm higher than the standard oil pan.

Our oil pan is only available without baffle plate, as these are not necessary ;-)

Do you have questions about the product? Just start the chat, we will help you with your product selection.

Questions & Answers

Fits for

Fits for

A1 / S1 | 8X | Year built 2010-2018 1 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CWZA \| 231 hp (170 kW)

A3 / S3 / RS3 | 8V | Year built 2012-2020 8 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CJXC \| 300 hp (220 kW)
2.0 TFSI (EA888 Gen. 3)	CJXC \| 360 hp (265 kW)
2.0 TFSI (EA888 Gen. 3)	CJXF \| 280 hp (206 kW)
2.0 TFSI (EA888 Gen. 3)	CJXG \| 310 hp (228 kW)
2.0 TFSI (EA888 Gen. 3)	CZPB \| 190 hp (140 kW)
2.0 TFSI (EA888 Gen. 3)	DJHA \| 310 hp (228 kW)
2.0 TFSI (EA888 Gen. 3)	DKZA \| 190 hp (140 kW)
2.0 TFSI (EA888 Gen. 3)	DNUE \| 300 hp (220 kW)

Q2 / SQ2 | GA | Year built 2016-> 2 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	DKZA \| 190 hp (140 kW)
2.0 TFSI (EA888 Gen. 3)	DNUE \| 300 hp (220 kW)

Q3 / RS Q3 | F3 | Year built 2018-> 2 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	DKTA \| 230 hp (169 kW)
2.0 TFSI (EA888 Gen. 3)	DNNA \| 190 hp (140 kW)

Q3 / RS Q3 | Sportback | Year built 2019-> 1 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	DKTA \| 230 hp (169 kW)

TT / TTS / TT RS | FV/8S | Year built 2014-> 5 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CHHC \| 230 hp (169 kW)
2.0 TFSI (EA888 Gen. 3)	CJXF \| 280 hp (206 kW)
2.0 TFSI (EA888 Gen. 3)	CJXG \| 310 hp (228 kW)
2.0 TFSI (EA888 Gen. 3)	DKTB \| 245 hp (180 kW)
2.0 TFSI (EA888 Gen. 3)	DNUF \| 306 hp (225 kW)

Alhambra | II (Type 7N) | Year built 2010-2022 1 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	DEDA \| 220 hp (162 kW)

Ateca | I | Year built 2016-> 3 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CZPB \| 190 hp (140 kW)
2.0 TFSI (EA888 Gen. 3)	DKZA \| 190 hp (140 kW)
2.0 TFSI (EA888 Gen. 3)	DNUE \| 300 hp (220 kW)

Leon | III (Type 5F) | Year built 2012-2020 8 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CJXA \| 280 hp (206 kW)
2.0 TFSI (EA888 Gen. 3)	CJXC \| 300 hp (220 kW)
2.0 TFSI (EA888 Gen. 3)	CJXE \| 265 hp (195 kW)
2.0 TFSI (EA888 Gen. 3)	CJXG \| 310 hp (228 kW)
2.0 TFSI (EA888 Gen. 3)	CJXH \| 290 hp (213 kW)
2.0 TFSI (EA888 Gen. 3)	DKZA \| 190 hp (140 kW)
2.0 TFSI (EA888 Gen. 3)	DNUC \| 290 hp (213 kW)
2.0 TFSI (EA888 Gen. 3)	DNUE \| 300 hp (220 kW)

Karoq | I (Type NU7) | Year built 2017-> 1 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	DKZA \| 190 hp (140 kW)

Kodiaq | I (Type NS7) | Year built 2017-> 3 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CHHB \| 220 hp (162 kW)
2.0 TFSI (EA888 Gen. 3)	CZPA \| 180 hp (132 kW)
2.0 TFSI (EA888 Gen. 3)	DKZA \| 190 hp (140 kW)

Octavia | III (Type 5E) | Year built 2012-2019 4 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CHHA \| 230 hp (169 kW)
2.0 TFSI (EA888 Gen. 3)	CHHB \| 220 hp (162 kW)
2.0 TFSI (EA888 Gen. 3)	DKZA \| 190 hp (140 kW)
2.0 TFSI (EA888 Gen. 3)	DLBA \| 245 hp (180 kW)

Octavia | IV (Type NX) | Year built 2019-> 0 Engines

Engine	Engine code

Superb | III (Type 3V) | Year built 2015-> 4 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CHHB \| 220 hp (162 kW)
2.0 TFSI (EA888 Gen. 3)	CJXA \| 280 hp (206 kW)
2.0 TFSI (EA888 Gen. 3)	DKZA \| 190 hp (140 kW)
2.0 TFSI (EA888 Gen. 3)	DNUA \| 272 hp (200 kW)

Golf | VII (Type AU) | Year built 2012-2019 16 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CJXD \| 290 hp (213 kW)
2.0 TFSI (EA888 Gen. 3)	DKFA \| 230 hp (169 kW)
2.0 TFSI (EA888 Gen. 3)	CHHA \| 230 hp (169 kW)
2.0 TFSI (EA888 Gen. 3)	CHHB \| 220 hp (162 kW)
2.0 TFSI (EA888 Gen. 3)	CJXB \| 280 hp (206 kW)
2.0 TFSI (EA888 Gen. 3)	CJXC \| 300 hp (220 kW)
2.0 TFSI (EA888 Gen. 3)	CJXC \| 360 hp (265 kW)
2.0 TFSI (EA888 Gen. 3)	CJXE \| 265 hp (195 kW)
2.0 TFSI (EA888 Gen. 3)	CJXG \| 310 hp (228 kW)
2.0 TFSI (EA888 Gen. 3)	CXCA \| 210 hp (155 kW)
2.0 TFSI (EA888 Gen. 3)	CXCB \| 220 hp (162 kW)
2.0 TFSI (EA888 Gen. 3)	DJHA \| 310 hp (228 kW)
2.0 TFSI (EA888 Gen. 3)	DKTB \| 245 hp (180 kW)
2.0 TFSI (EA888 Gen. 3)	DLBA \| 245 hp (180 kW)
2.0 TFSI (EA888 Gen. 3)	DNUC \| 290 hp (213 kW)
2.0 TFSI (EA888 Gen. 3)	DNUE \| 300 hp (220 kW)

Polo | VI (Type AW) | Year built 2017-> 0 Engines

Engine	Engine code

Scirocco | III (Type 13) | Year built 2008-2017 2 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CULA \| 180 hp (132 kW)
2.0 TFSI (EA888 Gen. 3)	CULC \| 220 hp (162 kW)

Sharan | II (Type 7N) | Year built 2010-2022 1 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	DEDA \| 220 hp (162 kW)

T-Roc | Type A1 | Year built 2017-> 0 Engines

Engine	Engine code

Tiguan | II (Type AD1) | Year built 2016-> 4 Engines

Engine	Engine code
2.0 TFSI (EA888 Gen. 3)	CHHB \| 220 hp (162 kW)
2.0 TFSI (EA888 Gen. 3)	CZPA \| 180 hp (132 kW)
2.0 TFSI (EA888 Gen. 3)	DNJA \| 230 hp (169 kW)
2.0 TFSI (EA888 Gen. 3)	DNLA \| 190 hp (140 kW)
