CANchecked MFD28 Gen.2 Display suitable for BMW F87 M2 & S55B30 F8X M3/M4

The vehicle-specific CANchecked MFD28 Gen.2 for your BMW F20/21/22/23, F30/31/34 and F80/82/87.

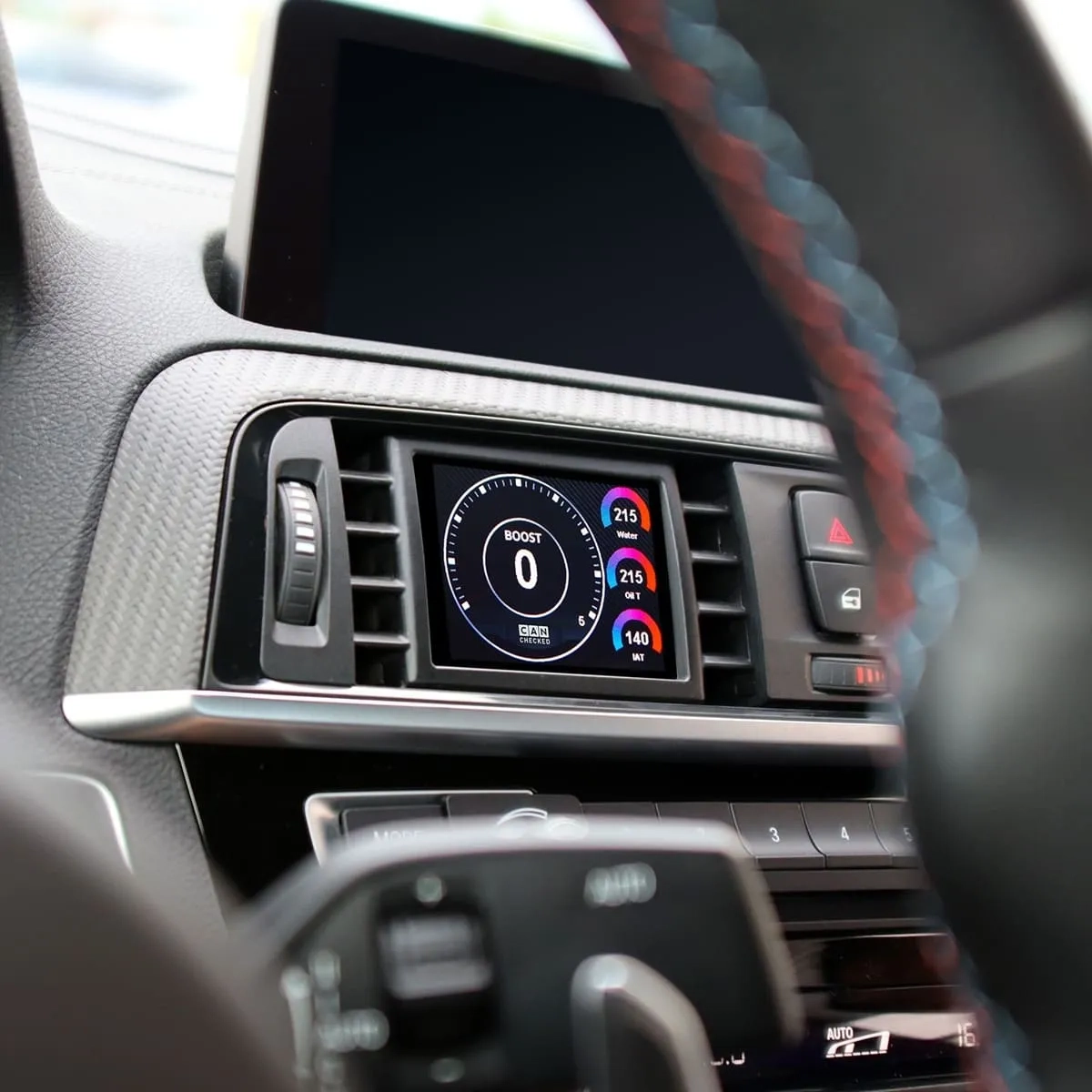

Perfectly integrated and all data always in view The vehicle-specific MFD28 Gen.2 transforms your air vent into an intelligent display with features you won't want to do without. Our displays are designed so that they can be installed by anyone. Illustrated installation instructions are available for most models so that you can install your display without a visit to the workshop.

Features:

• Perfect integration: The vehicle-specific bezel still allows airflow past the display
• Can Bus: Read out in-depth vehicle data such as manufacturer diagnostic tools
• Gear display: Directly via Can Bus or calculated from speed and rpm
• Touchscreen: Navigate through the pages using intuitive swipe gestures
• Customisation: Design your own pages, add your own images or your own start animation
• Additional inputs: Connect up to 4 analogue inputs and an ethanol sensor directly to the display
• Can switching: Use your display as a keypad and send your own can messages to the bus
• Customisable Alarms: Customised alerts can be easily configured and activated. Receive e. g. a large warning message if the exhaust gas temperature is above 900 degrees
• Logging: Log and save your data on the internal SD card for later analysis
• Performance meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance metre without any additional hardware
• DTC*: Read and delete errors from the engine control unit, transmission, ABS and all-wheel drive
• Dimming*: Your display dims automatically together with the instrument panel

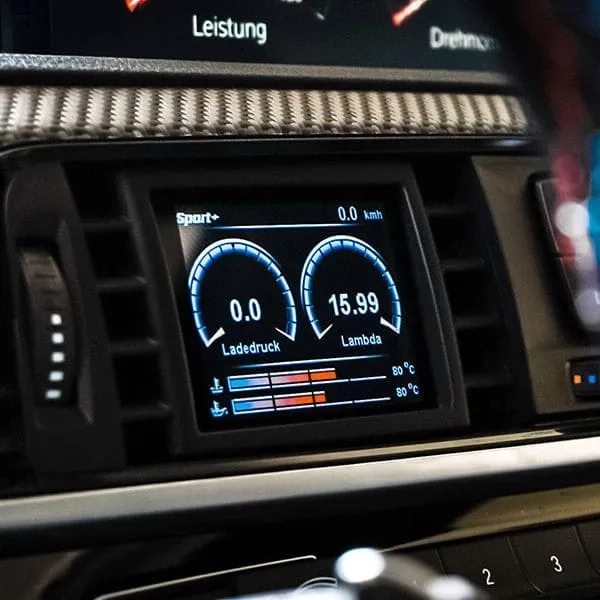

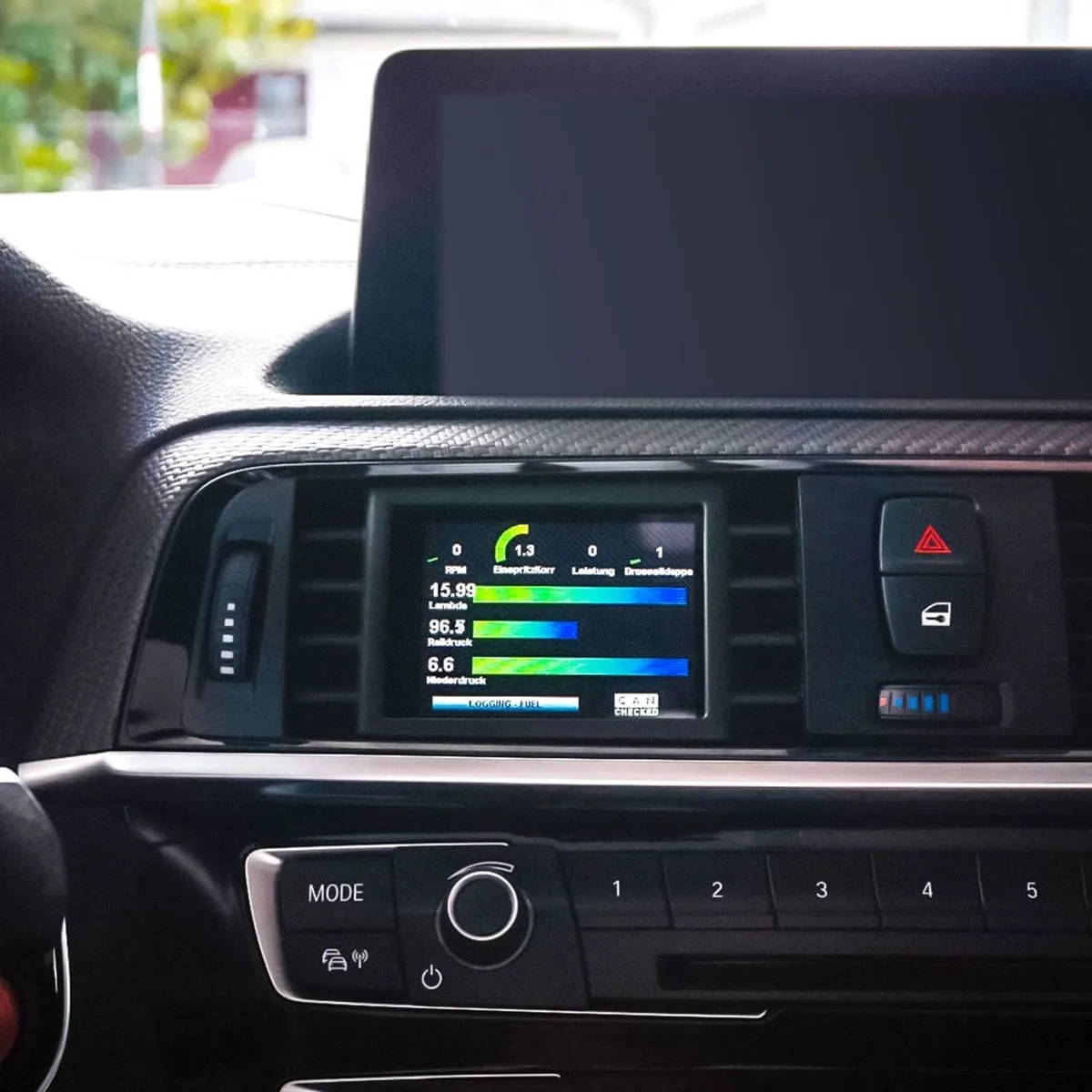

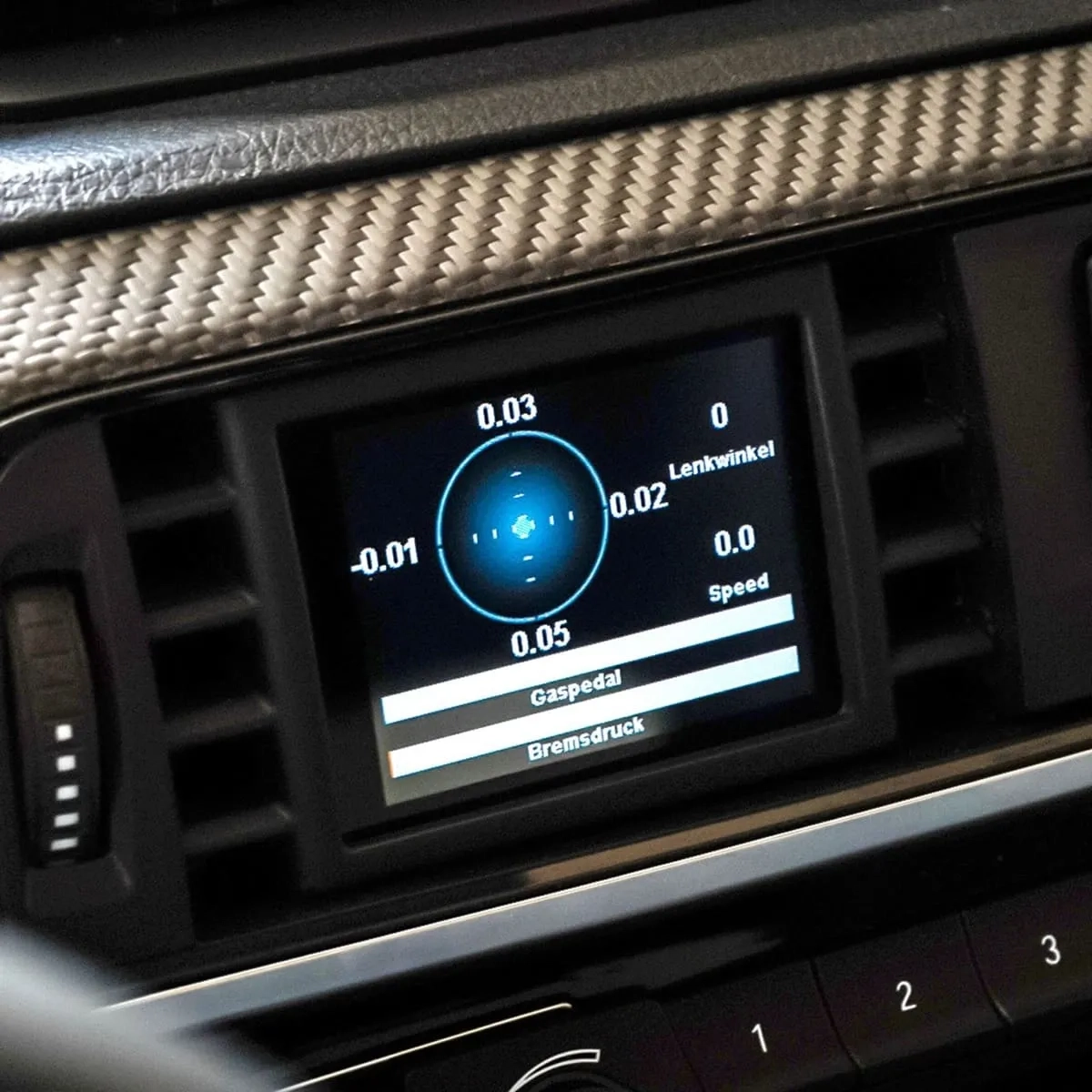

• Configure your own page or choose from various ready-made views:
• The display is delivered with predefined sample pages Creating your own pages is possible and desirable Up to ten pages possible 20 different widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar) Widgets can be scaled in size and positioned using drag and drop Colours of the widgets are fully adjustable Up to 64 widgets per page

Display Setup Software - DSS With the CANchecked DSS you can fully customise your display to your requirements. You can download and view the log files with the integrated log viewer. A can logger is also integrated. The centrepiece is the integrated TRI editor with which you can adapt the sensors (whether Can Bus or internal). Assign min/max values for warnings and change the names of your sensors.

Many customers always ask: Which values can I query from my control unit? The answer: ALL!

We have reverse-engineered the data for most engines and can offer in-depth data. Our display supports Can Bus data queries (UDS, TP2, manufacturer-specific protocols) (ISO 9141). Your display is supplied with ready-made TRI/TRX files as standard. All sensors that are queried are defined in the files. These vary from motor to motor. Here is an excerpt of what is possible:

• Temperatures: Exhaust gas temperature, coolant temperature, oil temperature, intake temperature, outside temperature, petrol temperature, DSG temperature
• Pressures: boost pressure , ambient pressure, petrol pressure pre-feed pump, rail pressure actual/target
• Lambda/mixture Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
• Other RPM, air mass, vehicle speed, throttle valve angle, total ignition angle, ignition angle reduction per cylinder, N75 acceleration in %, terminal 30 voltage, torque, gear, diesel-specific values

If values are missing, they can be added by us at a later date.
