1.8T & TFSI Schraube für Riemenscheibe ARP & BAR-TEK®

(4)

1.8T & 2.0L TFSI Timing Belt Gear Main Bolt by ARP & BAR-TEK®

Product number: 2118t142

Manufacturer: ARP

ARP screws-for-gear

Complies with aviation standard
For tuned engines
Highfest
Fits Plug & Play

€50.79

Prices incl. VAT plus shipping costs

Immediate delivery!

Worldwide shipping

Shop safely

Certified Online Shop

Made for High-Boost

Pay in advance

Description

Description

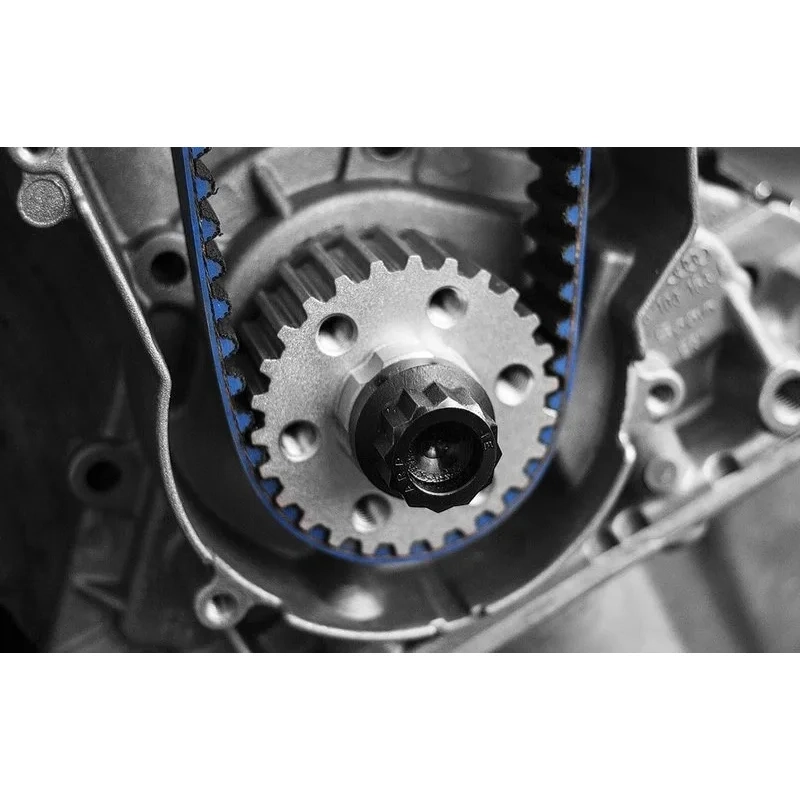

Timing Belt Gear Main Bolt for 1.8T and 2.0L TFSI Engines

Gear wheel main bolt from the renowned U.S. manufacturer ARP for reinforcement of the timing belt drive in 1.8T or 2.0L TFSI engines.

With this bolt, you circumvent the greatest weakness of Audi and VW engines: The connection of the timing belt drive to crankshaft! The original parts allow a high degree of tolerance, so the guide groove on the crankshaft quickly shears off. Especially in the case of tuned engines, this can happen quickly due to the enormous output.

Our bolt has a higher clamping force and meets the aviation standard. It is made of high-strength steel and can even be reused. Perfect for top tuning demands!

Properties of the ARP main bolt for the gear wheel:

10 % greater clamping force
Meets the aviation standard
Quality steel
Hardened
Reusable
Plug & play (same wrench size)
In-house development, together with ARP

Suitable for:

1.8T 20V engines (only for transverse engines, e.g. in the Golf MK4)
2.0L TFSI engines (such as AXX, BWA, BWE, BPY, CDL)
Not suitable for 2.0L TSI chain-driven engines such as in the Golf MK6 with 211 hp
Not suitable for 1.8T longitudinally mounted engines such as the AEB engine

More pictures of our test Golf

Optimal for supplementing our high-torque gear wheel kit.

Torque like in the standard part: 90 Nm + 90°

For secure installation, include our friction disc in the order!

Do you have questions about the product? Just start the chat, we will help you with your product selection.

Questions & Answers

Fits for

Fits for

A1 / S1 | 8X | Year built 2010-2018 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	CDLH \| 256 hp (188 kW)

A3 / S3 / RS3 | 8L | Year built 1996-2003 13 Engines

Engine	Engine code
1.8T	AGU \| 150 hp (110 kW)
1.8T	AJQ \| 180 hp (132 kW)
1.8T	AMK \| 210 hp (154 kW)
1.8T	APP \| 180 hp (132 kW)
1.8T	APY \| 210 hp (154 kW)
1.8T	AQA \| 150 hp (110 kW)
1.8T	ARX \| 150 hp (110 kW)
1.8T	ARY \| 180 hp (132 kW)
1.8T	ARZ \| 150 hp (110 kW)
1.8T	AUL \| 210 hp (154 kW)
1.8T	AUM \| 150 hp (110 kW)
1.8T	AUQ \| 180 hp (132 kW)
1.8T	BAM \| 225 hp (165 kW)

A3 / S3 / RS3 | 8P, 8PA | Year built 2003-2013 5 Engines

Engine	Engine code
2.0 TFSI (EA113)	AXX \| 200 hp (147 kW)
2.0 TFSI (EA113)	BHZ \| 265 hp (195 kW)
2.0 TFSI (EA113)	BPY \| 200 hp (147 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	CDLA \| 265 hp (195 kW)

A4 / S4 / RS4 | B7 (Type 8E) | Year built 2004-2008 4 Engines

Engine	Engine code
2.0 TFSI (EA113)	BGB \| 200 hp (147 kW)
2.0 TFSI (EA113)	BPG \| 200 hp (147 kW)
2.0 TFSI (EA113)	BUL \| 220 hp (162 kW)
2.0 TFSI (EA113)	BWE \| 200 hp (147 kW)

A6 / S6 / RS6 | C6 | Year built 2004-2011 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	BPJ \| 170 hp (125 kW)

TT / TTS / TT RS | 8J | Year built 2006-2014 3 Engines

Engine	Engine code
2.0 TFSI (EA113)	BPY \| 200 hp (147 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	CDLB \| 272 hp (200 kW)

TT / TTS / TT RS | 8N | Year built 1998-2006 11 Engines

Engine	Engine code
1.8T	AJQ \| 180 hp (132 kW)
1.8T	APP \| 180 hp (132 kW)
1.8T	APX \| 224 hp (165 kW)
1.8T	ARY \| 180 hp (132 kW)
1.8T	AUM \| 150 hp (110 kW)
1.8T	AUQ \| 180 hp (132 kW)
1.8T	BAM \| 225 hp (165 kW)
1.8T	BEA \| 224 hp (165 kW)
1.8T	BFV \| 240 hp (177 kW)
1.8T	BVP \| 163 hp (120 kW)
1.8T	BVR \| 190 hp (140 kW)

Alhambra | I (Type 7M8) | Year built 1995-2010 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	ADY \| 115 hp (85 kW)

Alhambra | I (Type 7M9) | Year built 2000-2010 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	ATM \| 115 hp (85 kW)

Altea | I | Year built 2004-2015 0 Engines

Engine	Engine code

Exeo | I (Type 3R) | Year built 2008-2013 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWE \| 200 hp (147 kW)

Ibiza | II (Type 6K/6K GP01) | Year built 1993-2002 3 Engines

Engine	Engine code
1.8T	AQX \| 156 hp (115 kW)
1.8T	AYP \| 156 hp (115 kW)
1.8T	AYP \| 180 hp (132 kW)

Ibiza | III (Type 6L) | Year built 2002-2008 3 Engines

Engine	Engine code
1.8T	BBU \| 180 hp (132 kW)
1.8T	BJX \| 150 hp (110 kW)
1.8T	BKV \| 150 hp (110 kW)

Leon | I (Type 1M1) | Year built 1999-2006 6 Engines

Engine	Engine code
1.8T	AJQ \| 180 hp (132 kW)
1.8T	AMK \| 210 hp (154 kW)
1.8T	APP \| 180 hp (132 kW)
1.8T	ARY \| 180 hp (132 kW)
1.8T	AUQ \| 180 hp (132 kW)
1.8T	BAM \| 225 hp (165 kW)

Leon | II (Type 1P) | Year built 2005-2012 8 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 185 hp (136 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	BWJ \| 240 hp (177 kW)
2.0 TFSI (EA113)	BWJ \| 286 hp (210 kW)
2.0 TFSI (EA113)	BWJ \| 310 hp (228 kW)
2.0 TFSI (EA113)	CDLA \| 265 hp (195 kW)
2.0 TFSI (EA113)	CDLA \| 310 hp (228 kW)
2.0 TFSI (EA113)	CDLD \| 240 hp (177 kW)

Toledo | II (Type 1M) | Year built 1998-2004 1 Engines

Engine	Engine code
1.8T	AUQ \| 180 hp (132 kW)

Toledo | III (Type 5P) | Year built 2004-2009 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)

Octavia | I (Type 1U) | Year built 1996-2010 5 Engines

Engine	Engine code
1.8T	AGU \| 150 hp (110 kW)
1.8T	ARX \| 150 hp (110 kW)
1.8T	ARZ \| 150 hp (110 kW)
1.8T	AUM \| 150 hp (110 kW)
1.8T	AUQ \| 180 hp (132 kW)

Beetle / New Beetle | I (Type 9C/1C/1Y) | Year built 1997-2010 7 Engines

Engine	Engine code
1.8T	APH \| 150 hp (110 kW)
1.8T	AVC \| 150 hp (110 kW)
1.8T	AWC \| 150 hp (110 kW)
1.8T	AWP \| 180 hp (132 kW)
1.8T	AWU \| 150 hp (110 kW)
1.8T	AWV \| 150 hp (110 kW)
1.8T	BKF \| 150 hp (110 kW)

Eos | I (Type 1F) | Year built 2006-2015 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)

Golf | IV (Type 1J) | Year built 1997-2003 4 Engines

Engine	Engine code
1.8T	AGU \| 150 hp (110 kW)
1.8T	ARZ \| 150 hp (110 kW)
1.8T	AUM \| 150 hp (110 kW)
1.8T	AUQ \| 180 hp (132 kW)

Golf | V (Type 1K) | Year built 2003-2008 5 Engines

Engine	Engine code
2.0 TFSI (EA113)	AXX \| 200 hp (147 kW)
2.0 TFSI (EA113)	BPY \| 200 hp (147 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	BYD \| 230 hp (169 kW)
2.0 TFSI (EA113)	CDL \| 240 hp (177 kW)
