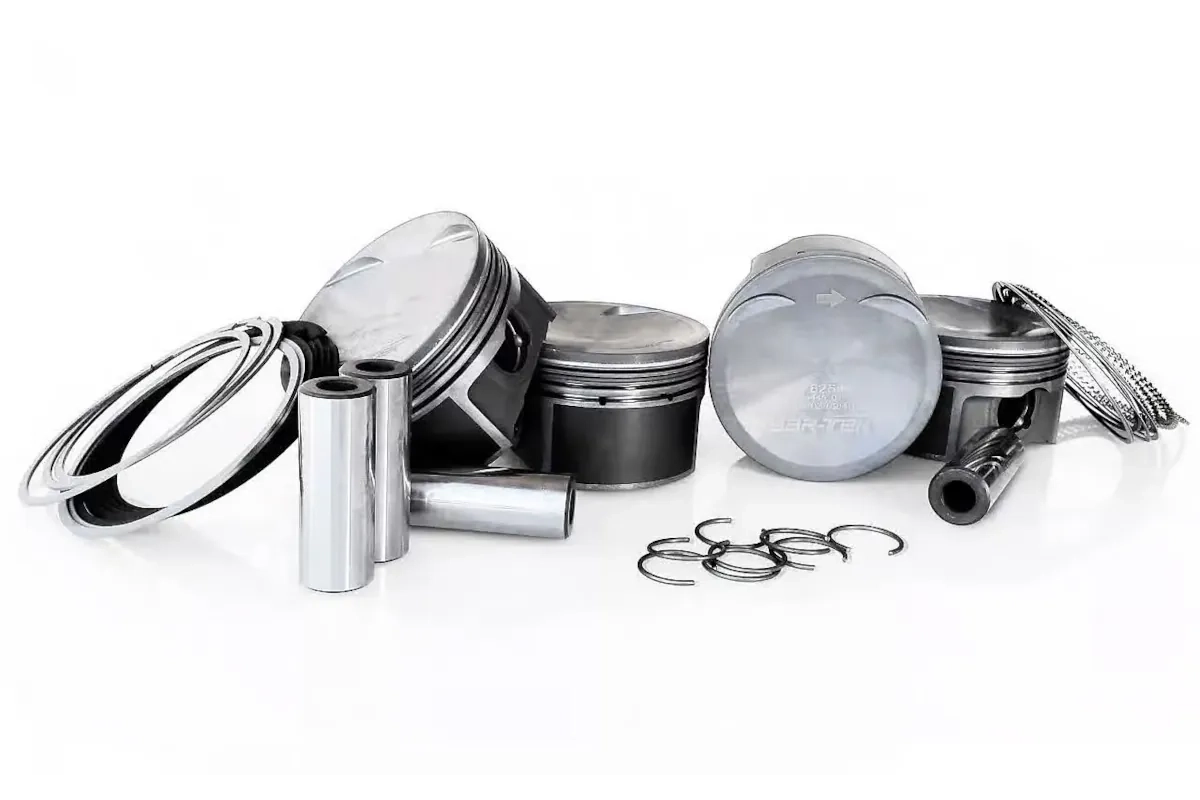

Forged Pistons Kit by JE Pistons for 1.8L TSI Chain-Driven Engines
Forged Pistons Kit by JE Pistons for 1.8L TSI Chain-Driven Engines
Piston pin for JE pistons
Schmiedekolben-Satz JE
Piston pin for JE pistons
Schmiedekolben-Satz JE
Quick Links
Group 6 Authorized Dealer

Forged Pistons Kit by JE Pistons for 1.8L TSI Chain-Driven Engines

Product number: 21tsi05
Manufacturer: JE Pistons
JE Forged piston
  • CNC milled
  • Anti-Friction Graphite Coating
  • Low running clearance possible
  • Smooth engine running even in cold start phase

US$1,145.54

Low stock levels

Immediate delivery!

icon/general/ico_circle_check-inner
Worldwide express delivery
icon/general/ico_circle_check-inner
30-day return policy
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Group 6 Authorized Dealer
Description

High Performance Pistons by JE Pistons

For All 1.8 TSI Chain-Driven Engines (for Example, in the Audi TT and VW Golf MK6)

With the forged pistons by JE for all 1.8L TSI chain-driven engines, it is easy to reduce compression and get more performance and durability at the same time. The special alloy of the pistons facilitates reduced movement, and a quiet engine running even in the cold start-up phase is ensured. Graphite coating reduces the friction.

Its properties make this piston kit a must-have for your performance-enhanced Golf MK6, Audi TT or Audi A5. Because especially in tuning, pistons are exposed to extreme forces. With these forged pistons, peak performances are no longer a problem!

Advantages of the 1.8L TSI Pistons by JE:

  • Reduced movement possible thanks to a special alloy
  • Quiet engine running even in the cold start-up phase
  • High-performance piston pins
  • For 1.8L TSI with EA888 engine type
  • For 148 x 21 mm con-rods
  • Reduced blow-by through special ring zones
  • Anti-friction graphite coating
  • Plug & play installation possible

Fits for:

first excess bore of 83,00mm

1.8L TSI chain-driven engines as Golf MK6, Audi TT, Audi A5, Seat Leon and many more 1.8L TSI engines.
Engine codes: CJSA, CJSB, CABB, CDHB, CJEB, CDAA

The standard hole for all 1.8L TSI engines is 82.50 mm.

All piston kits are delivered with high-strength piston pins and complete ring sets. Installation and drilling dimensions are included, of course.

Do you have questions about the product? Just start the chat, we will help you with your product selection.
Fits for
  • Volkswagen Golf VI (Type 5K1) | Year built 2008-2012 1.8 TFSI (EA888 Gen. 1 & 2) CDAA | 160 hp (118 kW)
  • Volkswagen Golf VII (Type AU) | Year built 2012-2019 1.8 TFSI (EA888 Gen. 3) CJSB | 180 hp (132 kW)
  • Volkswagen Passat B6 (Type 3C) | Year built 2005-2010 1.8 TFSI (EA888 Gen. 1 & 2) BZB | 160 hp (118 kW)
  • Volkswagen Passat B6 (Type 3C) | Year built 2005-2010 1.8 TFSI (EA888 Gen. 1 & 2) CDAA | 160 hp (118 kW)
  • Volkswagen Passat B7 (Type 3C/36) | Year built 2010-2015 1.8 TFSI (EA888 Gen. 1 & 2) CDAA | 160 hp (118 kW)
  • Volkswagen Passat B8 (Type 3G) | Year built 2014-> 1.8 TFSI (EA888 Gen. 3) CJSA | 180 hp (132 kW)
  • Volkswagen Passat B8 (Type 3G) | Year built 2014-> 1.8 TFSI (EA888 Gen. 3) CJSC | 180 hp (132 kW)
  • Volkswagen Passat CC (Type 35) | Year built 2008-2016 1.8 TFSI (EA888 Gen. 1 & 2) BZB | 160 hp (118 kW)
  • Volkswagen Passat CC (Type 35) | Year built 2008-2016 1.8 TFSI (EA888 Gen. 1 & 2) CDAA | 160 hp (118 kW)
  • Volkswagen Polo V (Type 6C) | Year built 2014-2017 1.8 TFSI (EA888 Gen. 1 & 2) DAJA | 192 hp (141 kW)
  • Volkswagen Polo V (Type 6C) | Year built 2014-2017 1.8 TFSI (EA888 Gen. 1 & 2) DAJB | 192 hp (141 kW)
  • Volkswagen Touran II (Type 5T) | Year built 2015-> 1.8 TFSI (EA888 Gen. 3) CJSA | 180 hp (132 kW)
