2.5 TFSI EA855 evo CNC aluminum upgrade runners dual port with fuel rail BAR-TEK®

Product number: 21rs725
Manufacturer: BAR-TEK®
BAR-TEK® upgrade funnel
  • High-end runners
  • dual port intake manifold injection
  • 10 nozzles for more power
  • including billet fuel rail

€1,636.40

Clock icon Low stock levels

Delivery 5 to 8 days

icon/general/ico_circle_check-inner
Worldwide express delivery
icon/general/ico_circle_check-inner
30-day return policy
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Rectangle Made in Germany
Red star icon for three-year warranty 3 Years Warranty
Description

Our latest high-end upgrade from the CNC. When it comes to getting the absolute max power out of your 5-cylinder, you’ll quickly hit the limit of what’s possible with the stock high-pressure injectors.

We’ve spent a long time developing and testing the runners and plenum on the dyno. As a result, we ditch the high-pressure injectors and run only port injection.

Our CNC-machined and perfectly finished runners let you run 2 injectors per cylinder. This way, a stable fuel supply for over 1500 hp is no problem. We optimized the port shape and enlarged it to the absolute max. Of course, we include the matching dual port fuel rail.

With our perfectly matched plenum, we gain massive extra power and clearly more torque, especially in the mid and upper rpm range.

In combination (plenum, runners, elbow and the right injector setup), we measured an increase of almost 100 hp.

Key features:

  • 2 port injectors per cylinder possible
  • maximizes fuel supply for maximum power
  • Noticeable power gain in the mid and upper rpm range
  • Significantly more torque compared to the stock intake manifold
  • Better throttle response
  • Increased cylinder filling thanks to optimized port shape
  • Stable wall thickness, making it suitable for very high boost pressure
  • perfect finish
  • black anodized
  • complete mounting kit with screws and gaskets
  • Delivery incl. dual port billet fuel rail

Delivered without the matching plenum.

Attention: The runners cannot be installed with a stock cylinder head because the ports are too small. We’re happy to machine your cylinder head to match your setup.

This set contains the following articles:
1

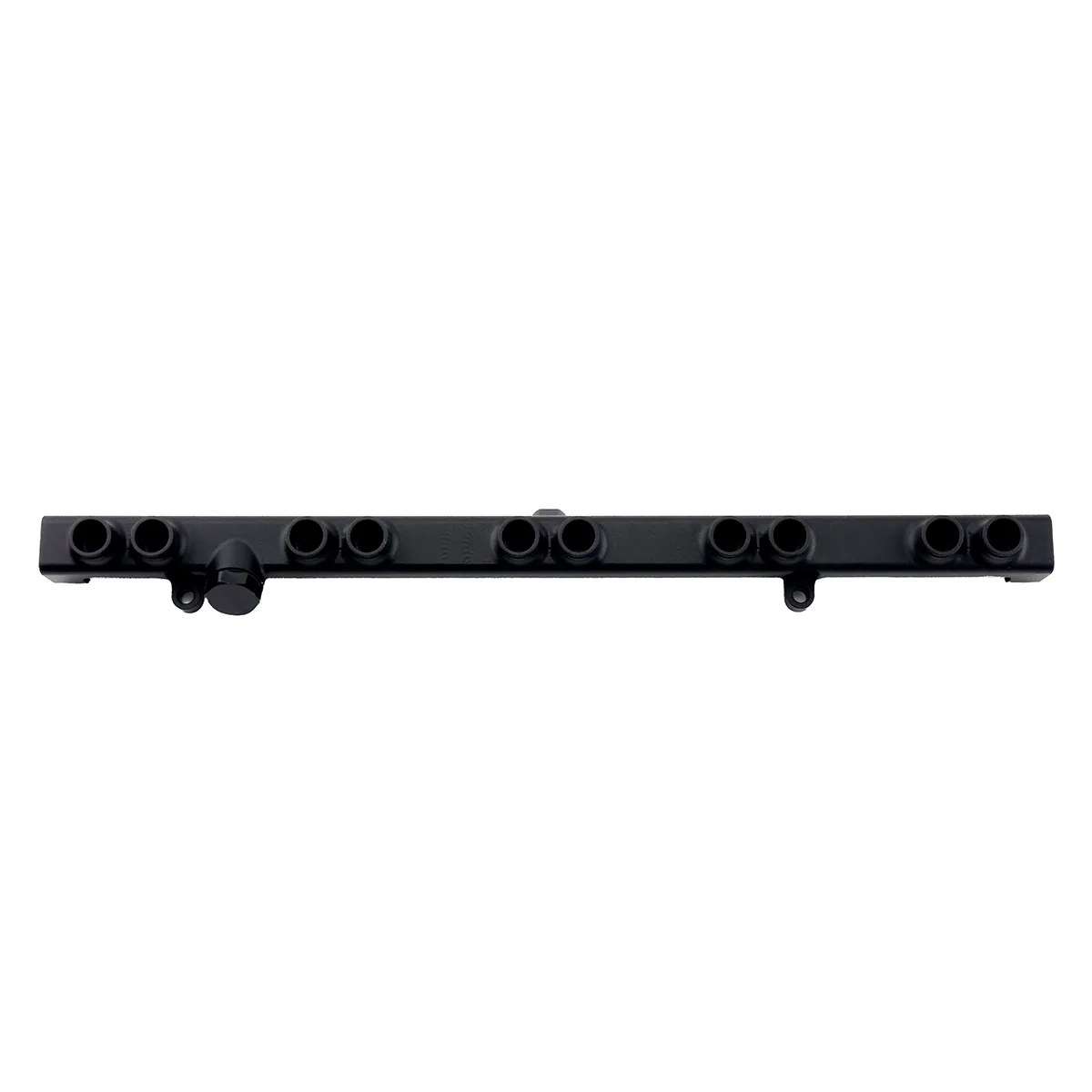

2.5 TFSI EA855 evo billet dual port fuel rail BAR-TEK®
Article number: 21rs724
2.5 TFSI EA855 evo Upgrade CNC Alu Runners Dual Port BAR-TEK®
1
2.5 TFSI EA855 evo CNC aluminum upgrade runners dual port BAR-TEK®
Article number: 21rs721
Product detail
Do you have questions about the product? Just start the chat, we will help you with your product selection.
Fits for
  • Audi A3 / S3 / RS3 8V | Year built 2012-2020 2.5 TFSI (EA855 evo) DAZA | 400 hp (294 kW)
  • Audi A3 / S3 / RS3 8V | Year built 2012-2020 2.5 TFSI (EA855 evo) DNWA | 400 hp (294 kW)
  • Audi A3 / S3 / RS3 8Y | Year built 2020-> 2.5 TFSI (EA855 evo) CZGB | 367 hp (270 kW)
  • Audi A3 / S3 / RS3 8Y | Year built 2020-> 2.5 TFSI (EA855 evo) DAZA | 400 hp (294 kW)
  • Audi A3 / S3 / RS3 8Y | Year built 2020-> 2.5 TFSI (EA855 evo) DNWA | 400 hp (294 kW)
  • Audi A3 / S3 / RS3 8Y | Year built 2020-> 2.5 TFSI (EA855 evo) DNWB | 390 HP (287 kW)
  • Audi A3 / S3 / RS3 8Y | Year built 2020-> 2.5 TFSI (EA855 evo) DNWC | 400 hp (294 kW)
  • Audi A3 / S3 / RS3 8Y | Year built 2020-> 2.5 TFSI (EA855 evo) DNWD | 407 PS (299 kW)
  • Audi A3 / S3 / RS3 8Y | Year built 2020-> 2.5 TFSI (EA855 evo) DXHB | 400 hp (294 kW)
  • Audi Q3 / RS Q3 2. Gen. (Typ F3) | Year built 2018–2025 2.5 TFSI (EA855 evo) DAZA | 400 hp (294 kW)
  • Audi Q3 / RS Q3 2. Gen. (Typ F3) | Year built 2018–2025 2.5 TFSI (EA855 evo) DNWA | 400 hp (294 kW)
  • Audi TT / TTS / TT RS FV/8S | Year built 2014-> 2.5 TFSI (EA855 evo) CZGB | 367 hp (270 kW)
  • Audi TT / TTS / TT RS FV/8S | Year built 2014-> 2.5 TFSI (EA855 evo) DAZA | 400 hp (294 kW)
  • Audi TT / TTS / TT RS FV/8S | Year built 2014-> 2.5 TFSI (EA855 evo) DNWA | 400 hp (294 kW)
  • Audi TT / TTS / TT RS FV/8S | Year built 2014-> 2.5 TFSI (EA855 evo) DNWB | 390 HP (287 kW)
  • Audi TT / TTS / TT RS FV/8S | Year built 2014-> 2.5 TFSI (EA855 evo) DNWC | 400 hp (294 kW)
