VW R32 High Performance Pistons-Kit Mahle

Product number: mar3201
Manufacturer: Mahle
High performance piston
  • High Boost
  • Extremely light
  • amplified

US$1,374.66

Delivery 5 to 8 days

icon/general/ico_circle_check-inner
Worldwide express delivery
icon/general/ico_circle_check-inner
30-day return policy
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Group 6 Authorized Dealer
Description

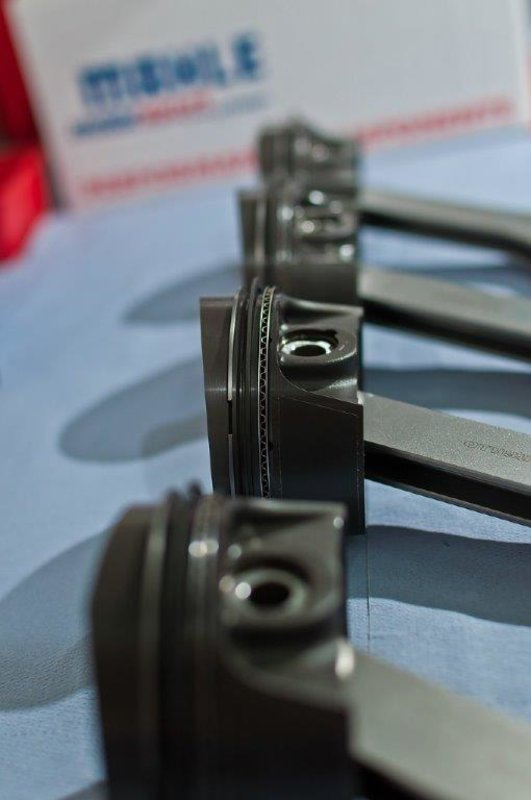

Mahle Performance Piston kit for all VW 3.2L R32 engines.

These pistons are recommended for any high performance engine build, as they offer unparalleled strength and longevity.

  • original Mahle
  • much lighter
  • reinforced

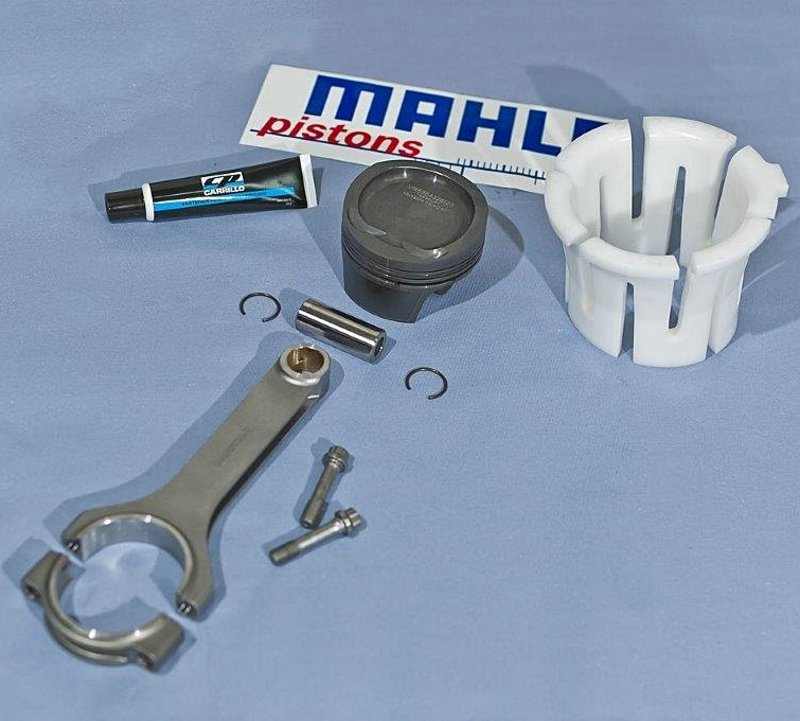

  • complete kit with rings and pins
  • bore size 84,50mm ( OEM 84,00mm )
  • 20mm piston pin diameter
  • Compression Ratio 9.0:1
  • Durable forged pistons
  • Lightweight piston design
  • High strength German steel wrist pins for high horsepower support
  • Propriety Mahle low-expansion 142P alloy
  • Tight ring to piston groove clearances to reduce blow-by
  • Hard anodized ring lands to avoid micro-welding
  • Grafal anti-friction skirt coating
  • Oil squirter notches that ensure no piston skirt to squirter interference


For following VW R32 engines with engine code BUB, BFH, BML, BJS.

To maximize power output, the clearances between the rings and piston have been brought in very tightly to reduce blow by. This is achieved by hard anodizing the top ring lands, which prevents micro welding which could be caused otherwise.

To maintain OEM-like wear characteristics, these pistons are coated with Mahle’s Grafal skirt coating. This coating reduces friction on the skirts, keeping them quiet and from wearing over time- extending piston life. The grey appearance of these pistons is due to a phosphate coating. Providing a lubricant film in the pin bores and ring grooves, this coating is essential for initial startup and break-in of the engine to prevent micro welding and galling. Features like these are what allow these pistons to last for thousands of miles, just like OEM units.

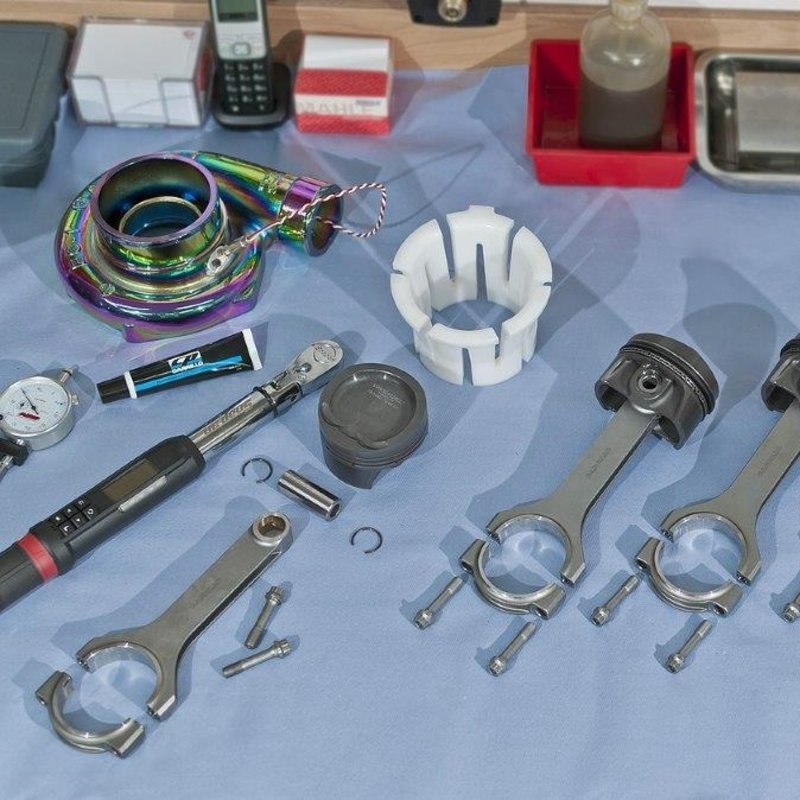

Unboxing MAHLE Motorsport Pistons by Bartek:

Do you have questions about the product? Just start the chat, we will help you with your product selection.
Fits for
  • Volkswagen Golf IV (Type 1J) | Year built 1997-2003 3.2 VR6 (EA390) BFH | 241 hp
  • Volkswagen Golf IV (Type 1J) | Year built 1997-2003 3.2 VR6 (EA390) BML | 241 hp (177 kW)
  • Volkswagen Golf V (Type 1K) | Year built 2003-2008 3.2 VR6 (EA390) BDB | 250 hp (184 kW)
  • Volkswagen Golf V (Type 1K) | Year built 2003-2008 3.2 VR6 (EA390) BMJ | 250 hp (184 kW)
  • Volkswagen Golf V (Type 1K) | Year built 2003-2008 3.2 VR6 (EA390) BUB | 250 hp (184 kW)
  • Volkswagen Golf V (Type 1K) | Year built 2003-2008 3.2 VR6 (EA390) CBRA | 250 hp (184 kW)
