The tuning setup of the 1.8T engine block
1.8T Tuning: Block and connecting rods
Here you'll get all the info you need to get to 500 PS and beyond with your 1.8T engine block and connecting rods. We show you where the engine is installed, how the block is built, its bearings, crankshaft, pistons and connecting rods and more! You'll also learn which tuning parts you need for your 1.8T engine to get the maximum performance out of it. There's something for every performance goal.
CONTENT
- 1. What cars have a 1.8T engine?
- 2. The engine block of the 1.8T engine
- 3. 1.8T engine main bearing/bearing shells
- 4. The crankshaft of the 1.8T engine
- 5. The con-rods in the 1.8T engine
- 6. The 1.8T piston
- 7. This is how the upgrade to 300+ PS will succeed.
- 8. What you need to upgrade to 400+ PS
- 9. This is how you successfully upgrade to 500+ PS
- 10. Do you have more questions about 1.8T tuning?

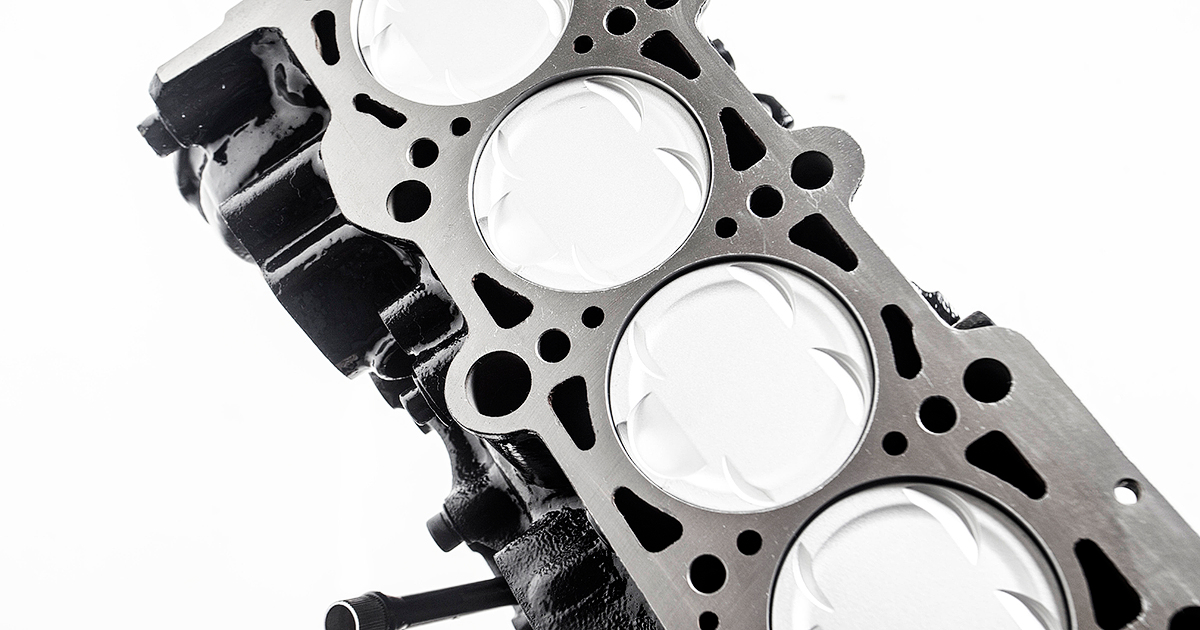

The engine block of the 1.8T engine
There are two different engine blocks. The 058 engine block was installed up to the production date of May 2000. In the Audi A4 B5, it is longitudinally mounted only. It has an internal intermediate shaft and an external water pump.
06A engine blocks, on the other hand, have no intermediate shaft, and the water pump is driven by the cam belt. They are installed in all vehicles with transverse engines.

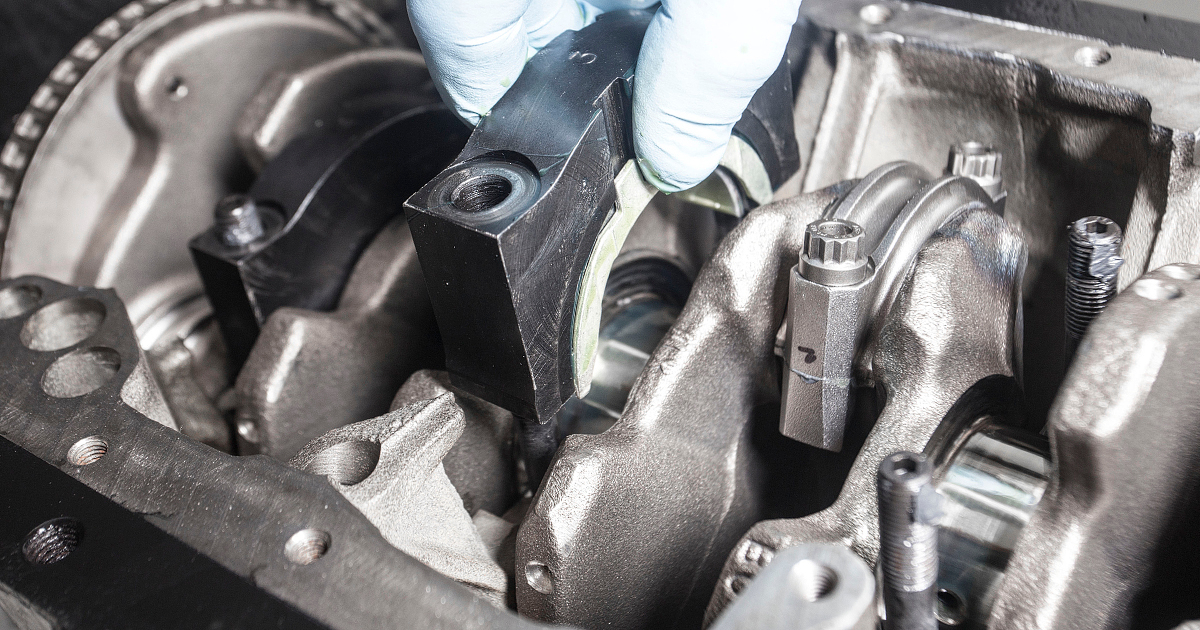

1.8T engine main bearing/bearing shells

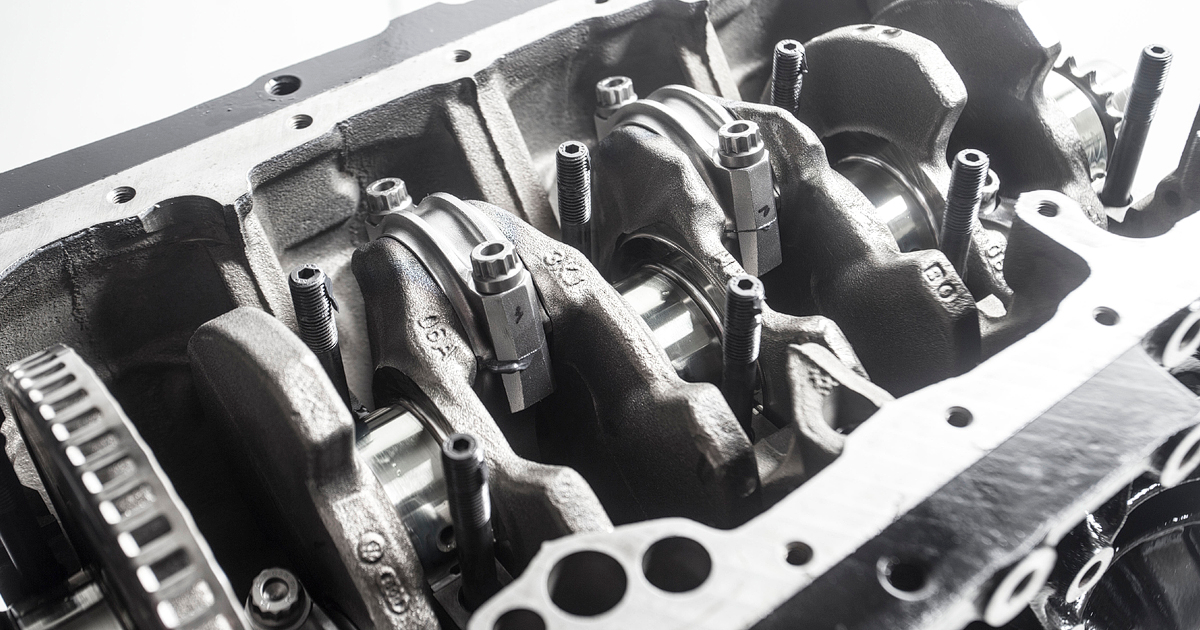

The crankshaft of the 1.8T engine
All 1.8T crankshafts have a stroke of 86.4 mm. They are made of cast iron or are forged. There are two different wheels used to determine the engine speed.
BAR-TEK®
1.8T 20V crankshaft for 1.8T Stroker Kit
+% more
For 2.0L displacement
More displacement
More power
Forged crankshaft
ZRP
1.8T Stroker & 2.0L TFSI forged lightweight crankshaft ZRP
1.8T 20V 92,8 mm Stroke
2.0L TFSI 90 mm Stroke
2.0L TFSI 95,2 mm Stroke
2.0L TFSI 98 mm Stroke
+% more
Forged from 4340 steel!
Shot peened
Finely balanced
Micropolished
From
€1,764.66

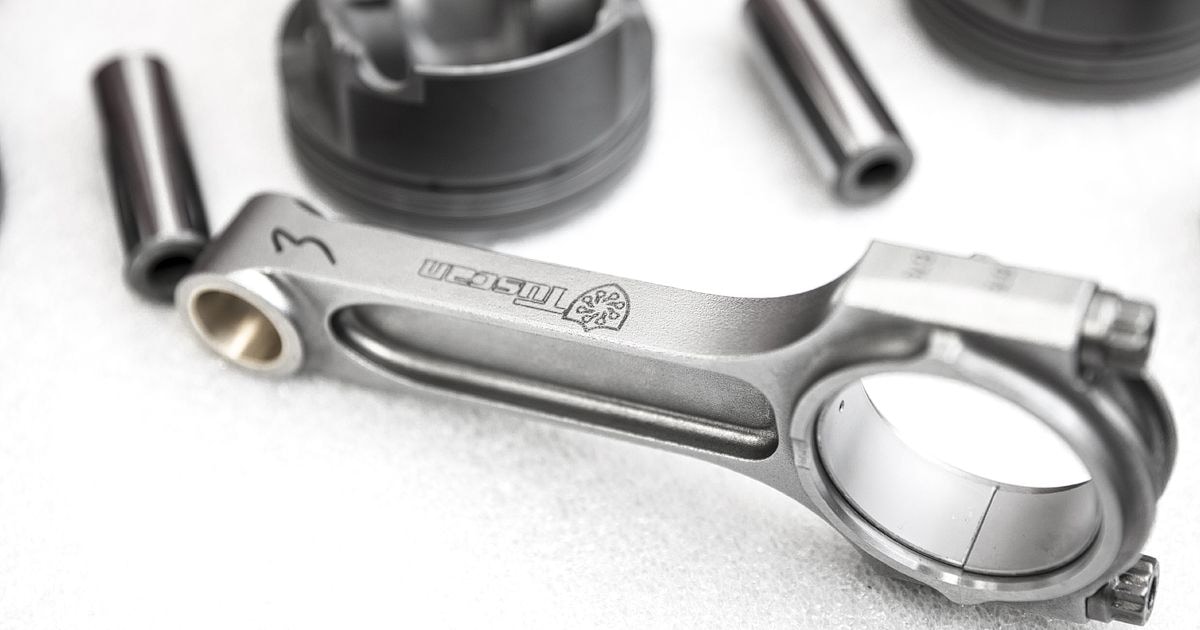

The con-rods in the 1.8T engine
All 1.8T con-rods have a length (hole center to hole center) of 144 mm and a width of 24.9 mm.
- 06A engines have a 19 mm piston pin (except 225 PS models that have a 20 mm piston pin)
- 058 engines all have a 20 mm piston pin
Tip
BAR-TEK®
1.8T 20V Forged Piston & Steel Con-Rod Set by Wiseco & BAR-TEK®
81.00 mm / 8.5:1
81.50 mm / 8.5:1
82.00 mm / 8.5:1
Skirt
Without coating
+% more
extremely light
enormous loads
up to 650 hp can be driven
From
€1,008.36
ZRP
1.8T 20V I-Beam Con-Rods 144x20mm ZRP
With rifle drilling
w/o rifle drilling
+% more
High Boost
Milled from the solid
Extremely light
Very stable
BAR-TEK®
1.8T 20V STROKER Kit BAR-TEK®
+% more
Displacement increase
More power
More pre-ignition possible
200cc more
K1
2.0L TSI EA888 Conrods Motorsport 144x21mm K1
+% more
High Boost
Very light
Very stable
Milled from the solid
BAR-TEK®
2.0L TSI EA888 Forged Piston & Steel Con-Rod Set by MAHLE & BAR-TEK®
82.50 mm / 9.6:1
83.00 mm / 9.6:1
+% more
Mahle H-Shaft Connecting Rod
Mahle piston
ACL connecting rod bearing
Tip
BAR-TEK®
2.0L TSI EA888 Gen.2 Forged Piston & Steel Connecting Rod High Boost ULTI Kit JE & BAR-TEK®
82.50 mm
83.00 mm
83.50 mm
+% more
High performance piston
Titanium-nitrided H-shaft connecting rod
ACL connecting rod bearing
APR stud bolt
BAR-TEK®
2.0L TSI EA888 V2 Piston & Rod Kit by MAHLE & BAR-TEK®
82.50 mm
83.00 mm
+% more
Top quality
High boost
Super processing
Extremely stable
IE - Integrated Engineering
2.0T TSI EA888 Conrods Motorsport Integrated for Aftermarket pistons
With rifle drilling
w/o rifle drilling
+% more
Billet
High boost
Made in USA
Super light
BAR-TEK®
VAG X-Beam conrods 144 x 20mm with ARP screws BAR-TEK®
+% more
For Up to 1000 HP
Only 599 grams per conrod
With additional oil hole
Original BAR-TEK®

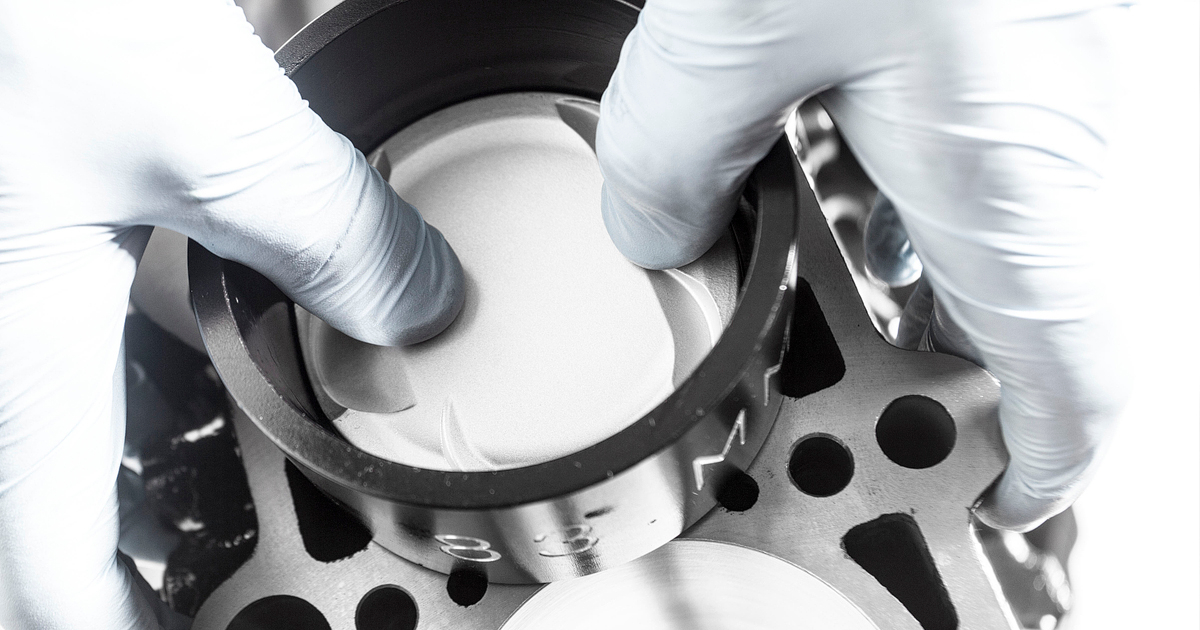

The 1.8T piston
Tip
BAR-TEK®
1.8T 20V Forged Piston & Steel Con-Rod Set by Wiseco & BAR-TEK®
81.00 mm / 8.5:1
81.50 mm / 8.5:1
82.00 mm / 8.5:1
Skirt
Without coating
+% more
extremely light
enormous loads
up to 650 hp can be driven
From
€1,008.36
Wössner
1.8T 20V High Performance Pistons-Kit Wössner
81.00 mm / 8.5:1
81.50 mm / 8.5:1
82.00 mm / 8.5:1
82.50 mm | 8.5:1
+% more
MADE IN GERMANY
Extremely light
Reinforced for maximum performance
Piston skirt coated for less friction
From
€739.46
BAR-TEK®
1.8T 20V STROKER Kit BAR-TEK®
+% more
Displacement increase
More power
More pre-ignition possible
200cc more
JE Pistons
1.8T High Performance Pistons-Kit JE
81,00 mm / 8,5:1
81,00 mm / 8,5:1 / Q
81,00 mm / 9,25:1
81,00 mm / 9,25:1 / Q
81,50 mm / 8,5:1
81,50 mm / 8,5:1 / Q
81,50 mm / 9,25:1
81,50 mm / 9,25:1 / Q
82,00 mm / 8,5:1
82,00 mm / 8,5:1 / Q
82,00 mm / 9,25:1
82,00 mm / 9,25:1 / Q
82,50 mm / 8,5:1
82,50 mm / 8,5:1 / Q
82,50 mm / 9,25:1
82,50 mm / 9,25:1 / Q
83,00 mm / 8,5:1
83,00 mm / 8,5:1 / Q
83,00 mm / 9,25:1
83,00 mm / 9,25:1 / Q
+% more
for powers up to 1000 HP
very lightweight
maximally reinforced
for 144x20mm conrod
From
€782.32
JE Pistons
1.8T High Performance Pistons-Kit JE for 2.2L conversion
+% more
Displacement increase to 2.2L
Extremely light
With 20mm piston pin
Coated
WISECO
1.8T High Performance Pistons-Kit WISECO
81.00 mm / 8.5:1
81.50 mm / 8.5:1
82.00 mm / 8.5:1
Skirt
Without coating
+% more
Extremely light
Maximum amplified
Piston skirt coated
Complete set
From
€714.24
JE Pistons
1.8T Race FSR 2.0L High Performance Pistons-Kit JE
83.00 mm | 8.5:1
83.00 mm | 9.5:1
+% more
FSR Design
20mm piston pin
For 144x20mm connecting rod
incl. turbo piston pin
WISECO
1.8T STROKER 1.9-2.0L High Performance Pistons-Kit WISECO
81.00 mm / 8.5:1
81.25 mm / 8.5:1
81.50 mm / 8.5:1
82.00 mm / 8.5:1
82.50 mm | 8.5:1
+% more
Original Wiseco
Reinforced for maximum power
For 144x20mm connecting rod

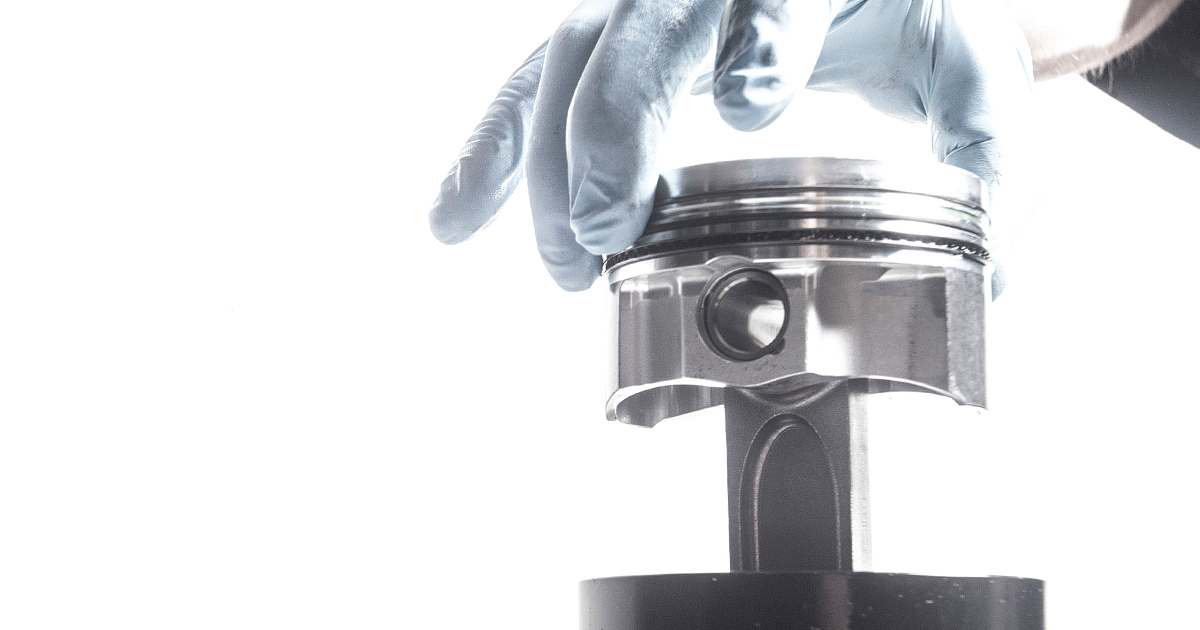

This is how the upgrade to 300+ PS will succeed.
As of a desired performance of 300 PS, we recommend the use of upgrade pistons and con-rods. This combination only works when the cylinder walls are in good condition, though. You get matching combinations of pistons and con-rods for your 1.8T engine from us.

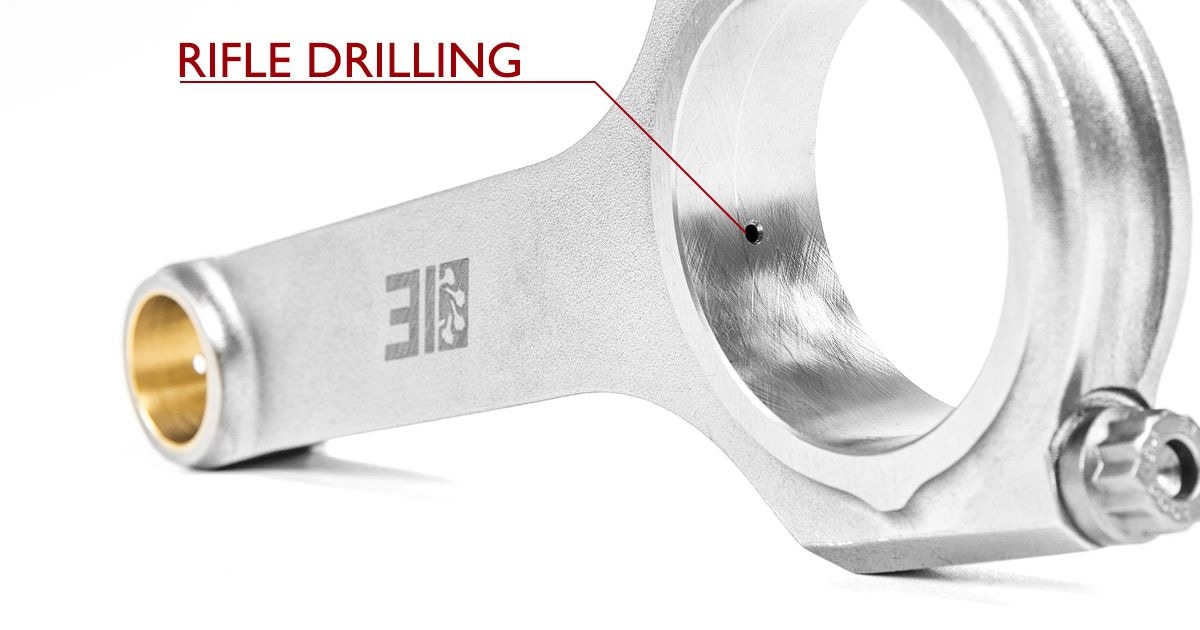

Con-rods with oil drilling hole:
The oil drilling hole is a hole that is present from the small to the large side of the con-rod (riffle drilled). Thanks to this additional oiling, the piston pin has a considerably longer service life.

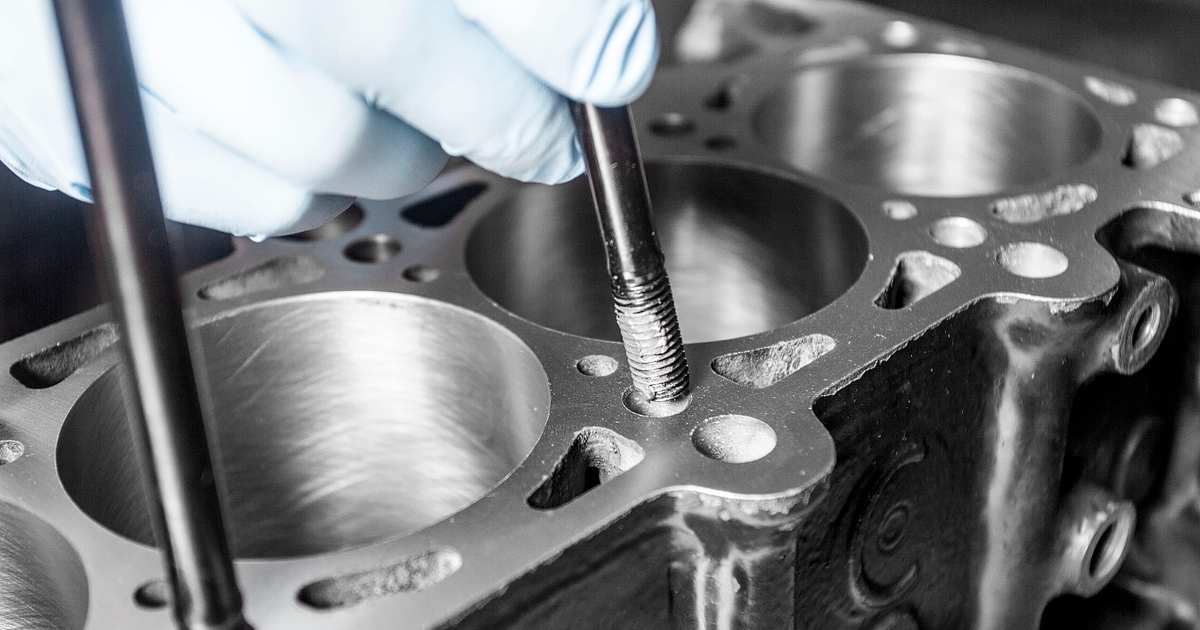

Bolts/studs:
What you need to upgrade to 400+ PS

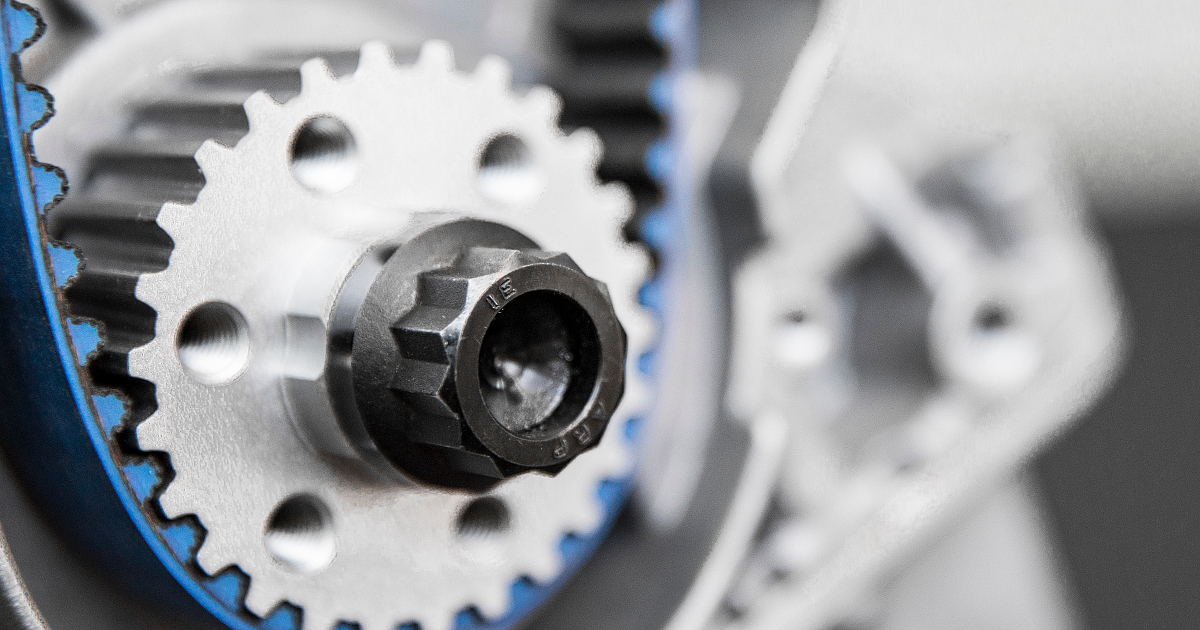

1.8T cam belt system:

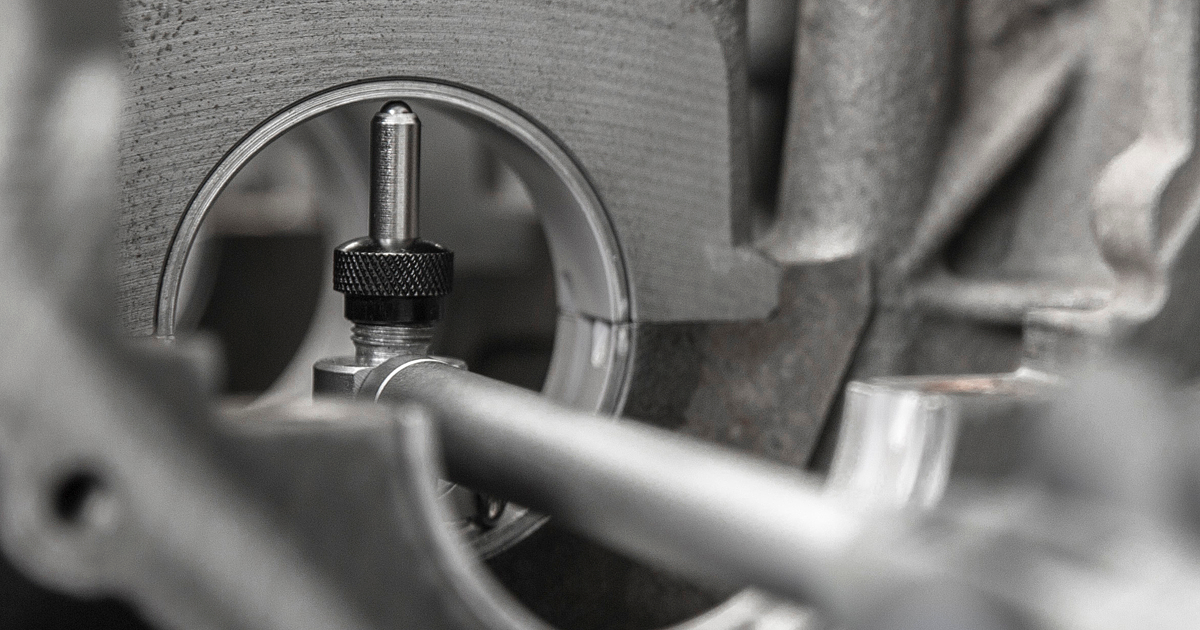

Main bearing

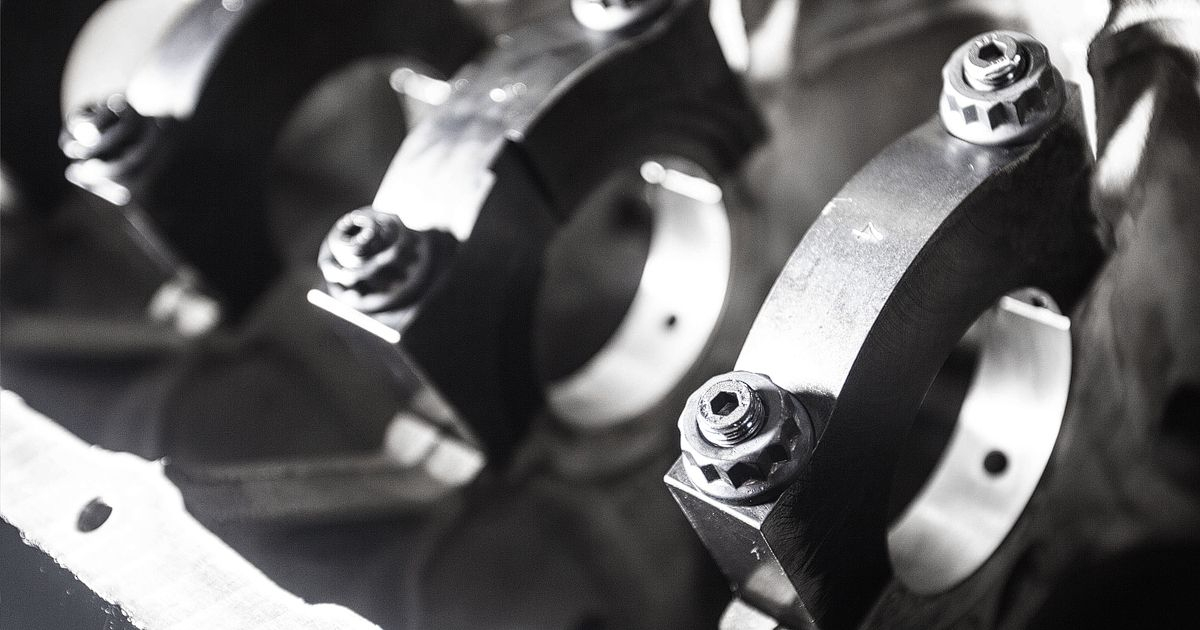

Main bearing supports
BAR-TEK®
1.8T Main Bearing Girdle singles BAR-TEK®
+% more
Prevents torsion
Highest stability
Oil separator
Galvanized stiffening plate
BAR-TEK®
1.8T Main Bearing Girdle BAR-TEK®
+% more
Up to 1000 HP
Less vibrations
Highfest
Made in Germany!
This is how you successfully upgrade to 500+ PS

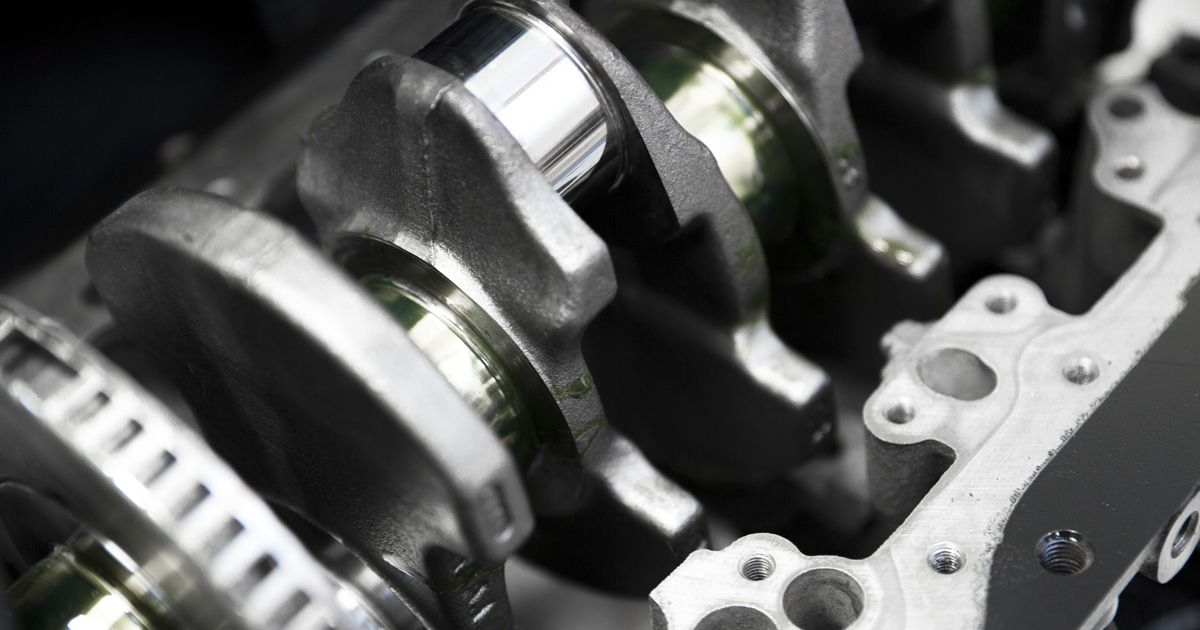

Crankshaft

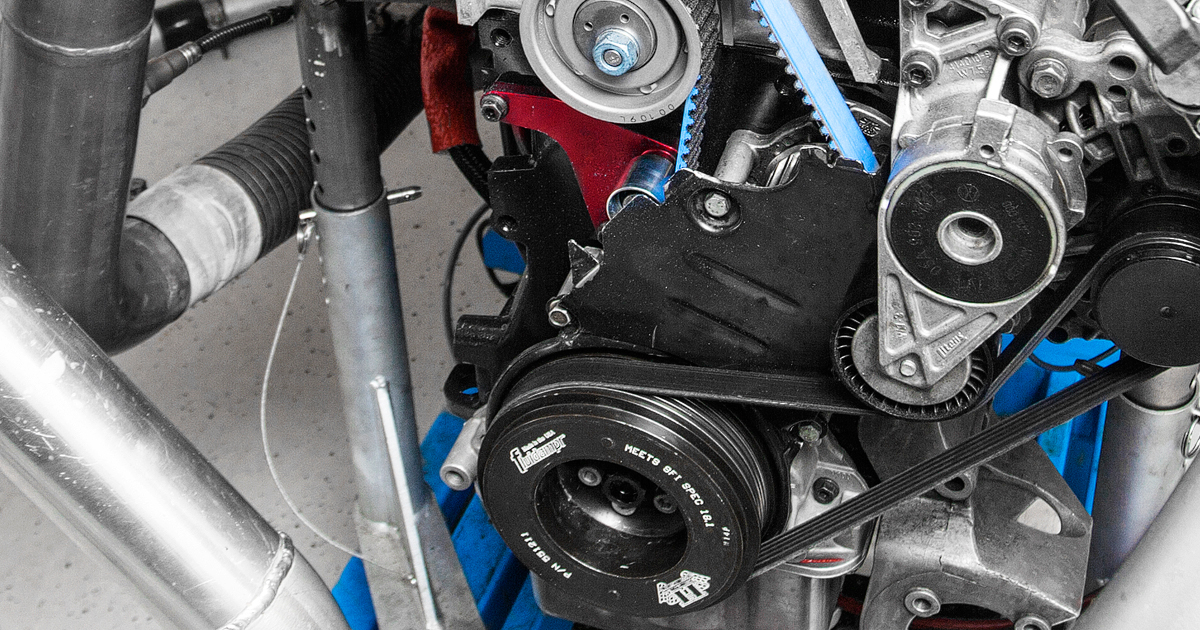

Vibration dampers

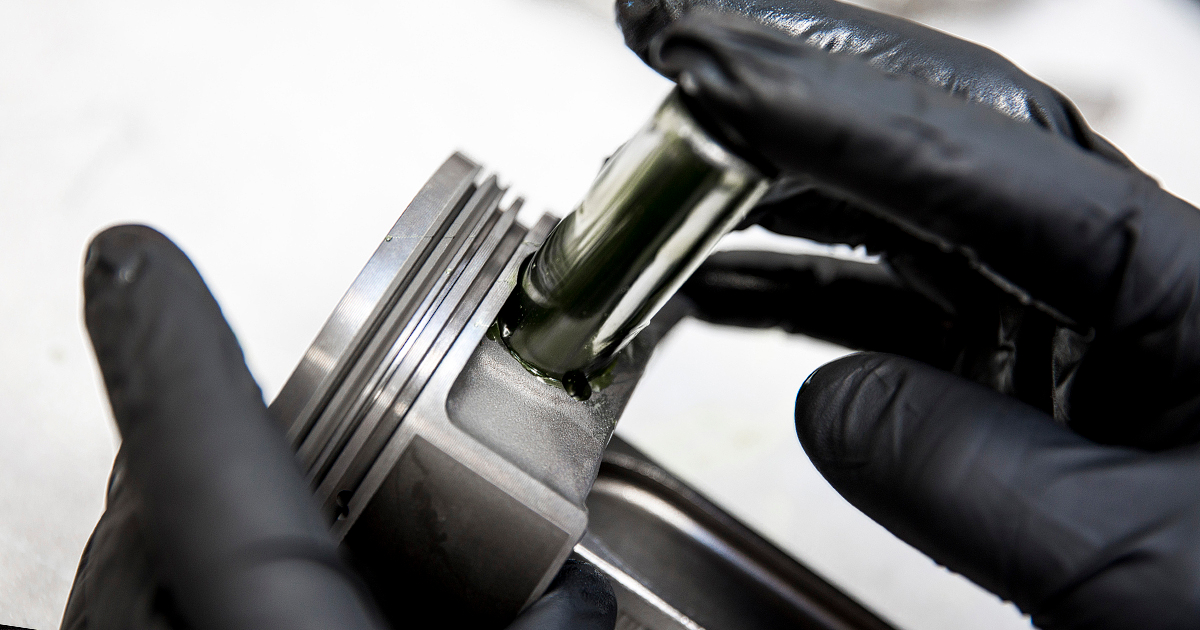

Piston pins
His first car was a Polo Mk1 with a 40 Weber twin carburetor and 129 PS (95 kW). His second was an Audi 50. Today Bartek tunes Lamborghinis to 1000 PS (735 kW). Even as a young boy, Bartek disassembled vehicles and put everything back together better. He wrote his high school diploma with oil on his fingers. The trained automotive mechanic with a focus on engines and gearboxes was determined to go into motorsports. In his 10 years in Formal 1, he supervised 73 races, including as engine mechanic for Ralf Schumacher at Toyota. Since 2010, he has dedicated himself fully to his company BAR-TEK® and helps his customers to bring VW and Audi engines to peak performance.
Expert in
Engine
Gearbox
