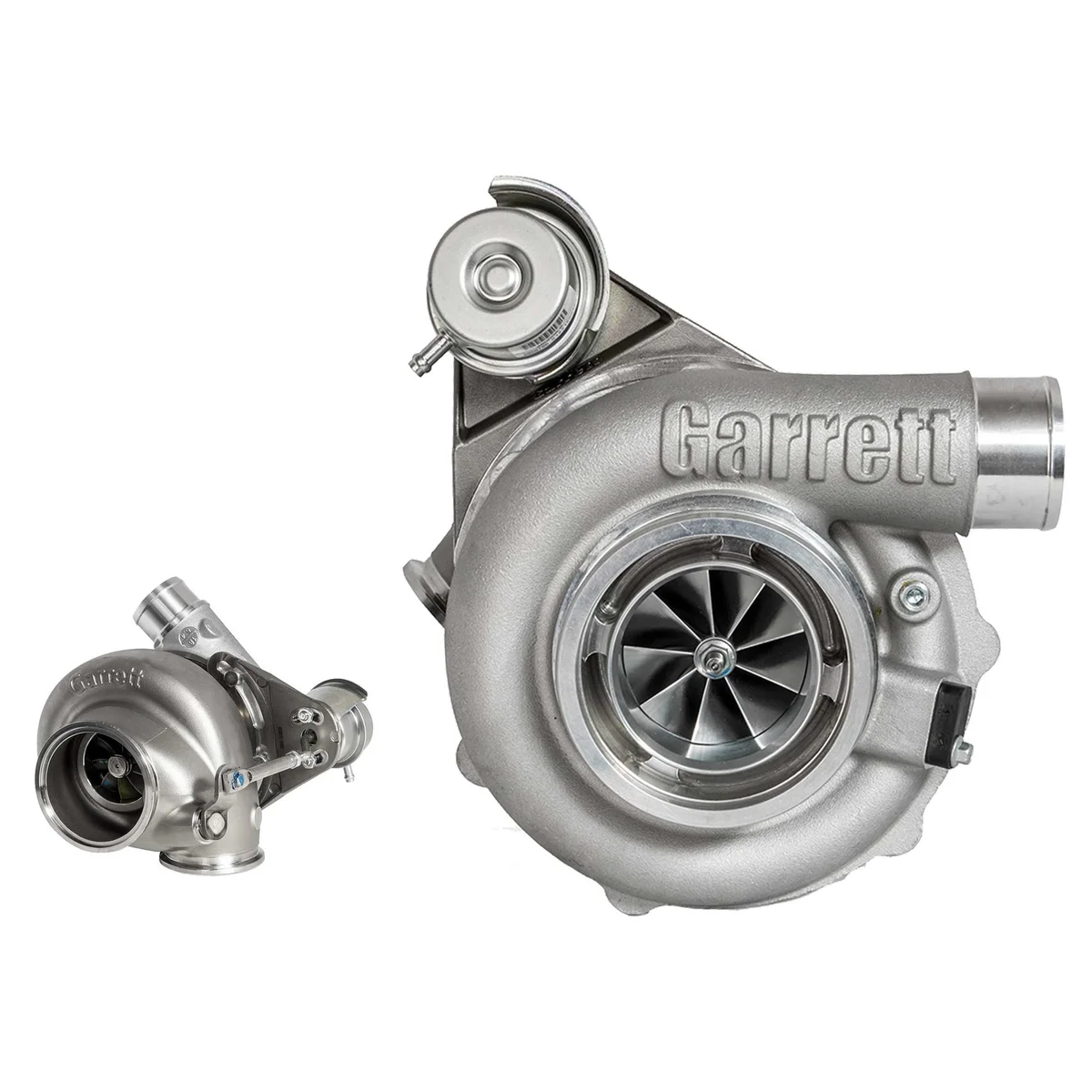

Garrett G30-660 Turbocharger 880704-5003S

Product number: 880704-5003S

Garrett Turbocharger

up to 660 HP
Standard Rotation
Ball bearing
Compressor wheel Ø 54mm

€1,913.29

Prices excl. VAT plus shipping costs

Delivery 5 to 8 days

Worldwide shipping

Shop safely

Certified Online Shop

Made for High-Boost

Quick Links

Flange Diagram

Authorized Dealer

Description

Description

Power Rating: 350-660 HP
Displacement: 2.0 - 3.5 L
V-Band Inlet - V-Band Outlet - Single Scroll - Internal Wastegate - A/R 1.01

Garrett G-Series - The newest and most advanced generation turbocharger!

These very small turbochargers achive extremely high performance with minimum space requirements.

Features:

Latest CFD-optimised, forged milled compressor wheel
High-Flow compressor housing with integrated easy plug speed sensor port
Rotation: Standard (Clockwise)
Dual ceramic ball bearing cartridges
Includes -4AN oil restrictor fitting with 1mm orifice
Four large water jacket ports
Twin piston rings at compressor and turbine site
MAR-M 1050°C Turbine wheel
Water- and Oil cooled
Internal Wastegate
Turbine Housing: V-Band Inlet, V-Band Outlet
Compressor side: Inducer Ø 54mm / Exducer Ø 67mm
Turbine side: Inducer Ø 60mm / Exducer Ø 55mm
Delivery: Turbocharger, 0.5 bar Actuator, 2 x -6AN water fittings and two plugs, 1 x Oil restrictor -4AN

Buy from us, the only Garrett Performance distributor in Germany!Your best choice for quality and service for over 30 years!

Do you have questions about the product? Just start the chat, we will help you with your product selection.

direct reply in chat

Videos

Videos

Downloads

Downloads
