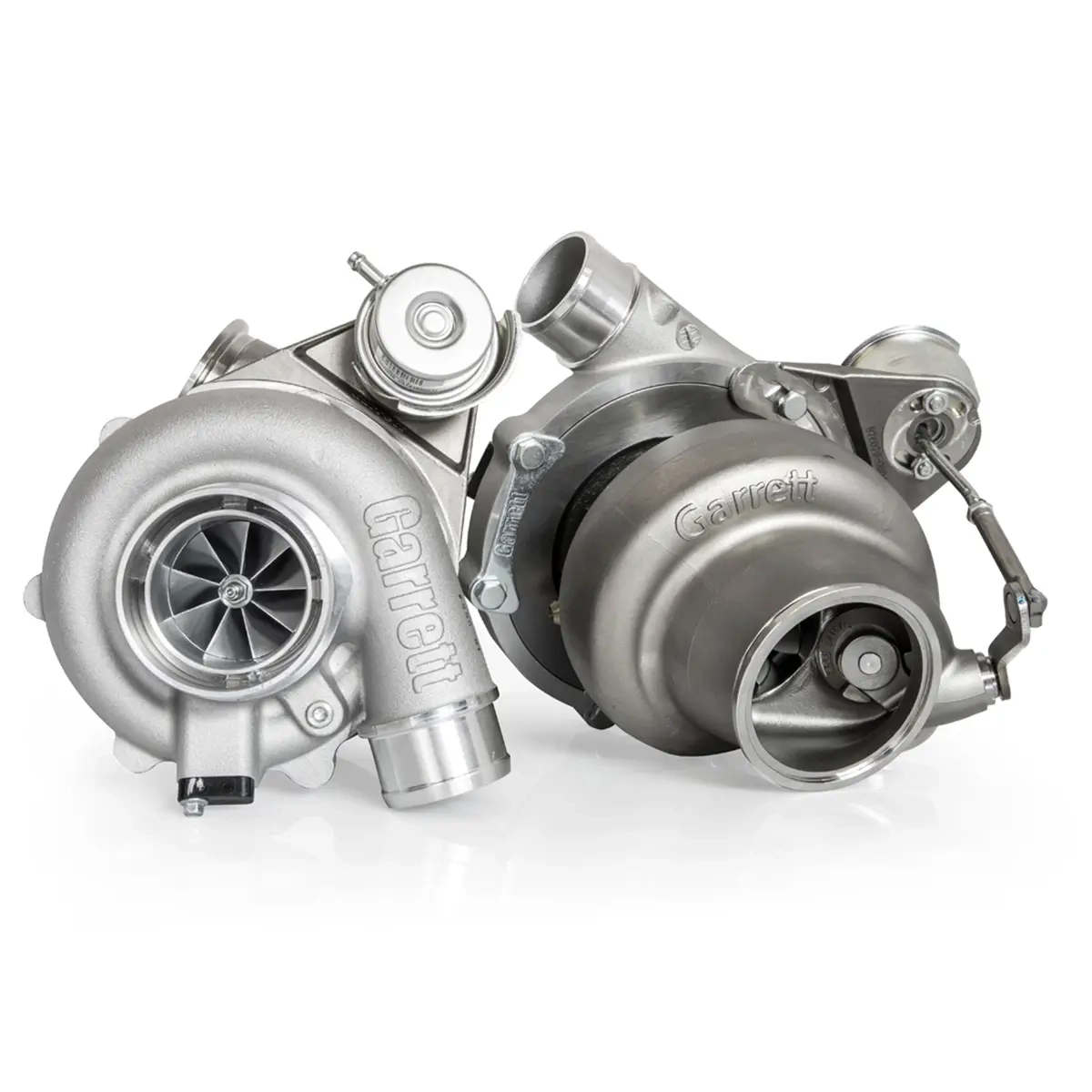

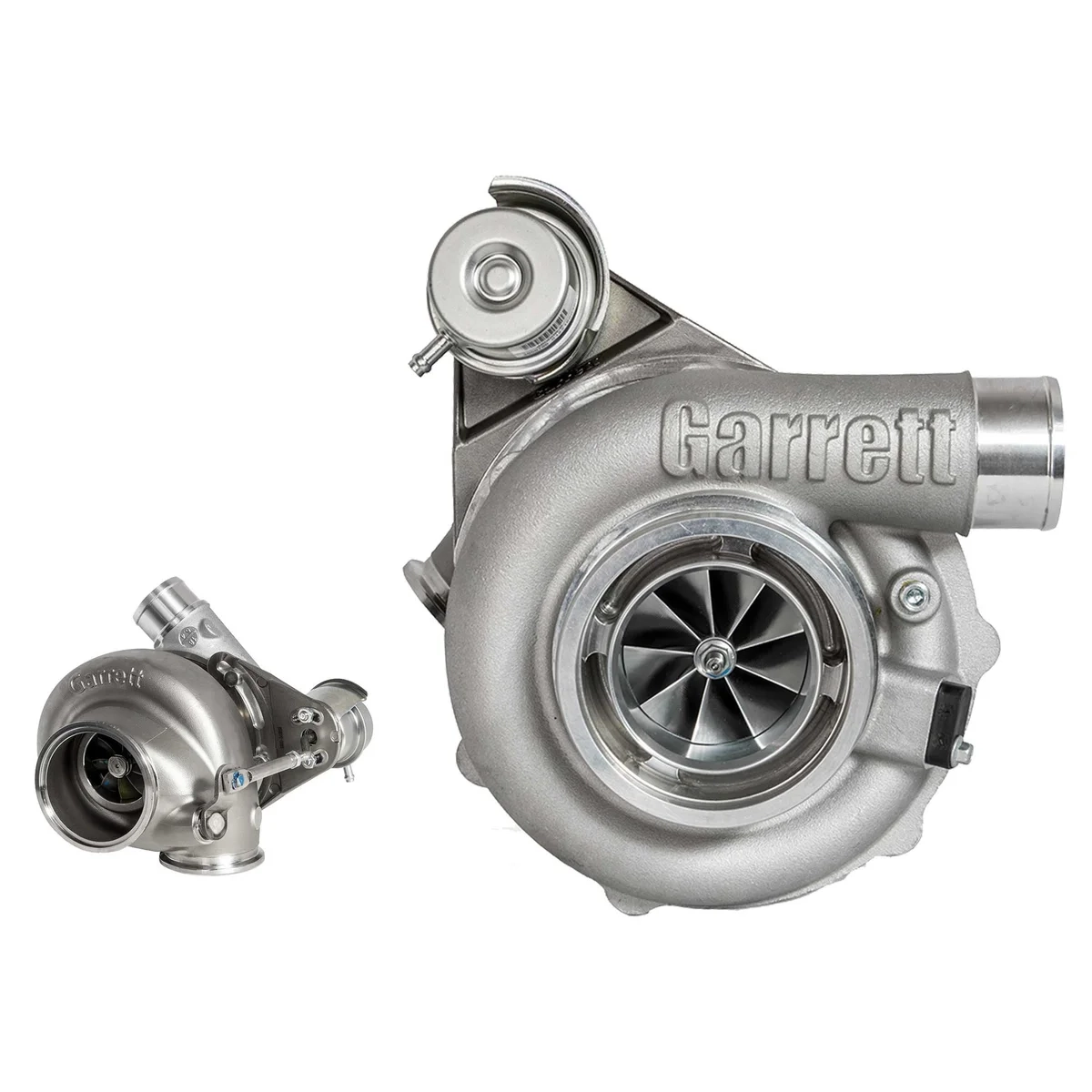

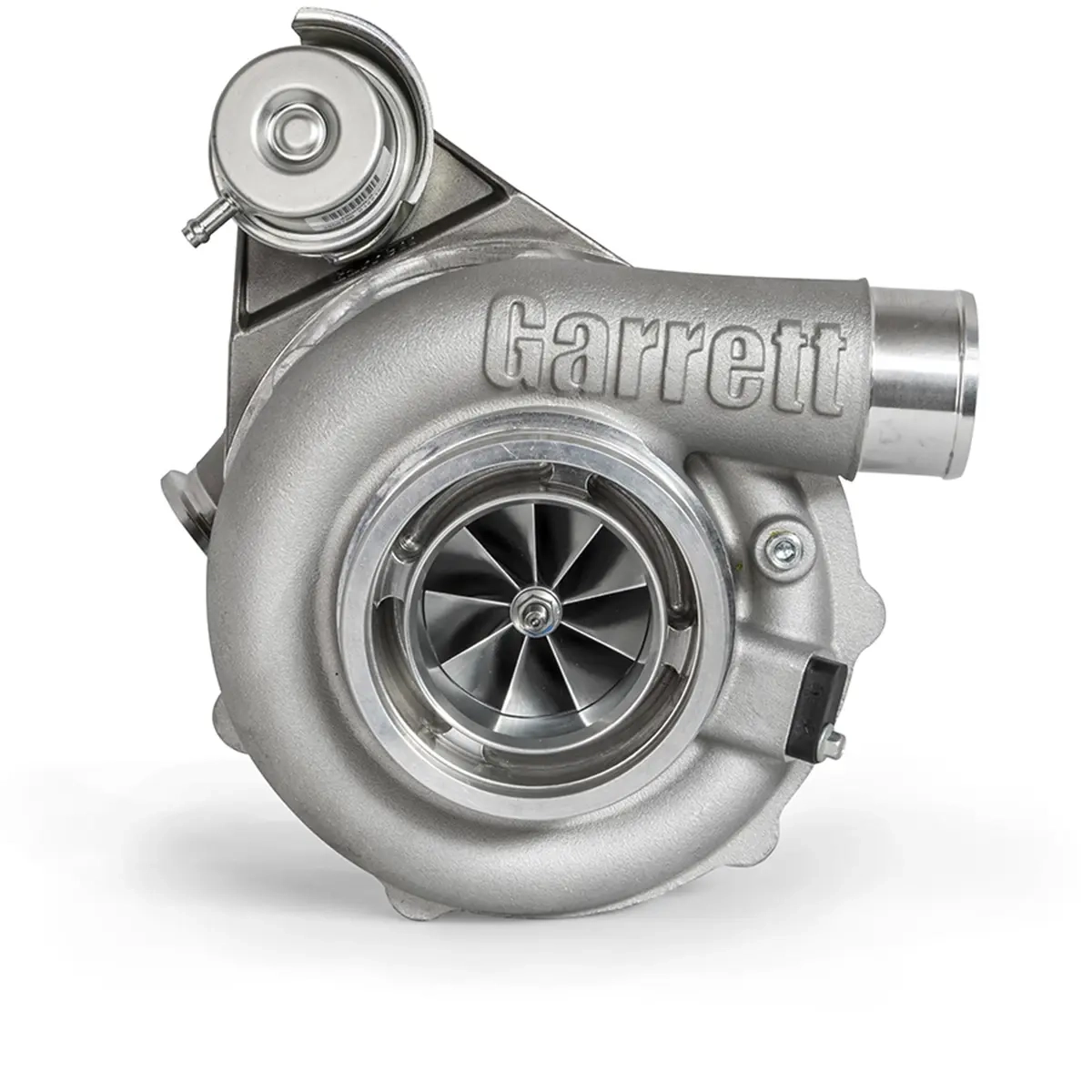

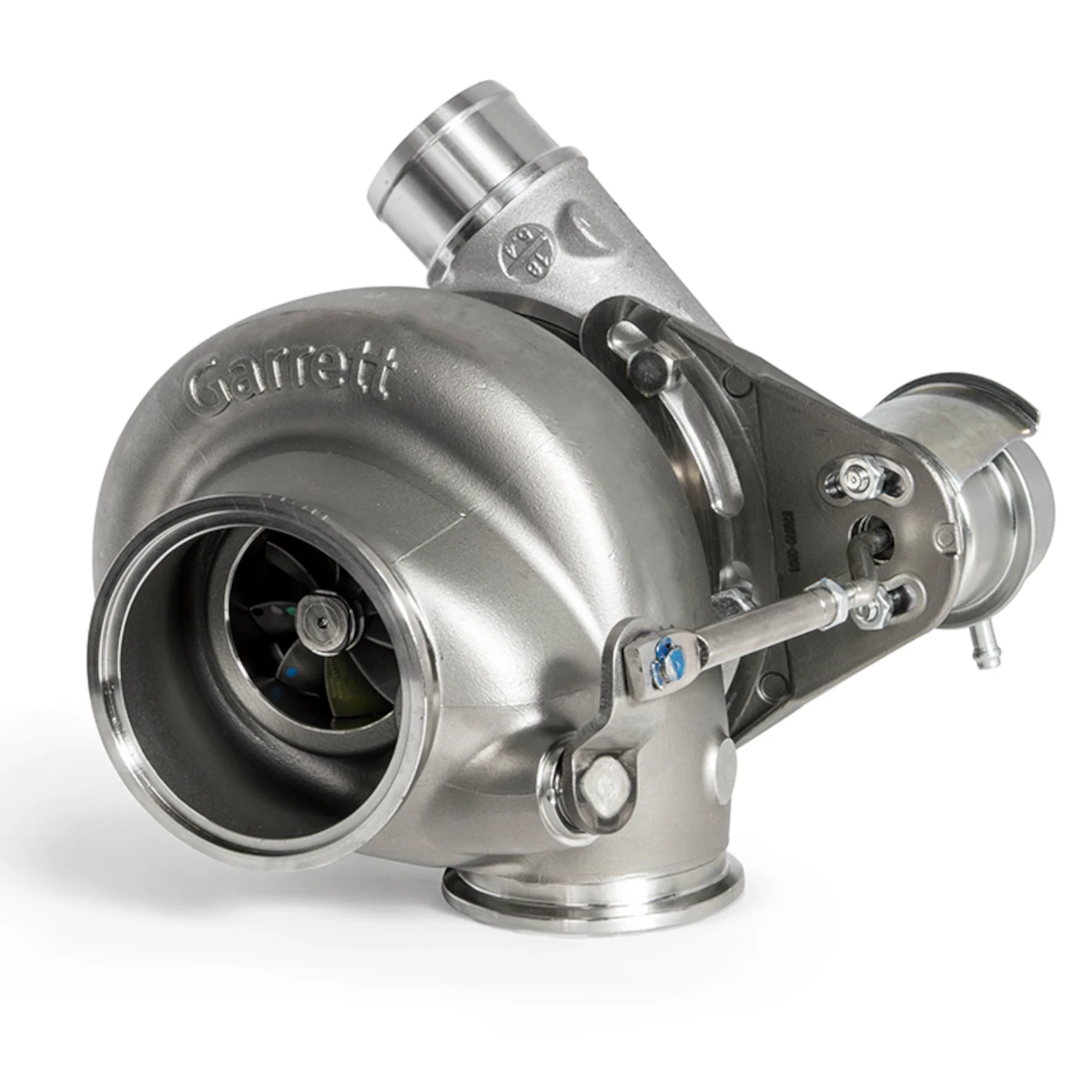

Garrett G30-770 Turbocharger 880704-5005S
- up to 770 HP
- Standard Rotation
- Ball bearing
- Compressor wheel Ø 58mm
- Description
- Latest CFD-optimised, forged milled compressor wheel
- High-Flow compressor housing with integrated easy plug speed sensor port
- Rotation: Standard (Clockwise)
- Dual ceramic ball bearing cartridges
- Includes -4AN oil restrictor fitting with 1mm orifice
- Four large water jacket ports
- Twin piston rings at compressor and turbine site
- MAR-M 1050°C Turbine wheel
- Water- and Oil cooled
- Internal Wastegate
- Turbine Housing: V-Band Inlet, V-Band Outlet
- Compressor side: Inducer Ø 58mm / Exducer Ø 71mm
- Turbine side: Inducer Ø 60mm / Exducer Ø 55mm
- Delivery: Turbocharger, 0.5 bar Actuator, 2 x -6AN water fittings and two plugs, 1 x Oil restrictor -4AN
- Videos
- Downloads
- Reviews (0)
- Blog Posts
- Accessory Items
Power Rating: 475-770 HP
Displacement: 2.0 - 3.5 L
V-Band Inlet - V-Band Outlet - Single Scroll - Internal Wastegate - A/R 0.83
Garrett G-Series - The newest and most advanced generation turbocharger!
These very small turbochargers achive extremely high performance with minimum space requirements.
Features:
Buy from us, the only Garrett Performance distributor in Germany!Your best choice for quality and service for over 30 years!
Accessory Items
Delivery 5 to 8 days
Immediate delivery!
Delivery 5 to 8 days
Delivery 5 to 8 days
Immediate delivery!
Immediate delivery!
Immediate delivery!
Delivery 5 to 8 days
Power Rating: 475-770 HP
Displacement: 2.0 - 3.5 L
V-Band Inlet - V-Band Outlet - Single Scroll - Internal Wastegate - A/R 0.83
Garrett G-Series - The newest and most advanced generation turbocharger!
These very small turbochargers achive extremely high performance with minimum space requirements.
Features:
- Latest CFD-optimised, forged milled compressor wheel
- High-Flow compressor housing with integrated easy plug speed sensor port
- Rotation: Standard (Clockwise)
- Dual ceramic ball bearing cartridges
- Includes -4AN oil restrictor fitting with 1mm orifice
- Four large water jacket ports
- Twin piston rings at compressor and turbine site
- MAR-M 1050°C Turbine wheel
- Water- and Oil cooled
- Internal Wastegate
- Turbine Housing: V-Band Inlet, V-Band Outlet
- Compressor side: Inducer Ø 58mm / Exducer Ø 71mm
- Turbine side: Inducer Ø 60mm / Exducer Ø 55mm
- Delivery: Turbocharger, 0.5 bar Actuator, 2 x -6AN water fittings and two plugs, 1 x Oil restrictor -4AN
Buy from us, the only Garrett Performance distributor in Germany!Your best choice for quality and service for over 30 years!
